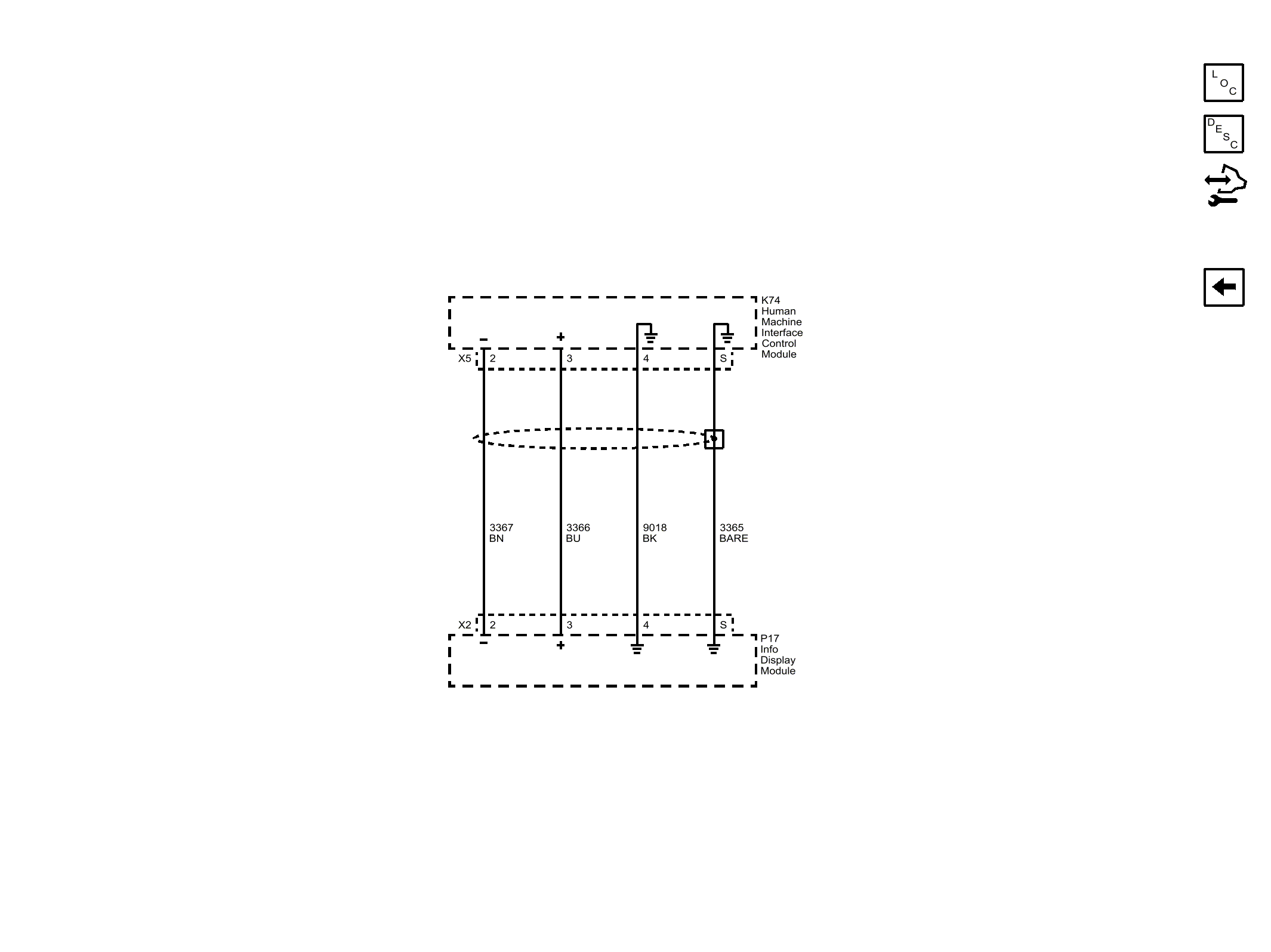

Home › Cadillac › 2015 › XTS Base › Repair and Diagnosis › Accessories & Equipment › Infotainment › Cellular System, Entertainment System, And Navigation System › Schematic Wiring Diagrams › Radio/Navigation System Wiring Schematics › Info Display Module Signals
