Power, Ground and Data Communication

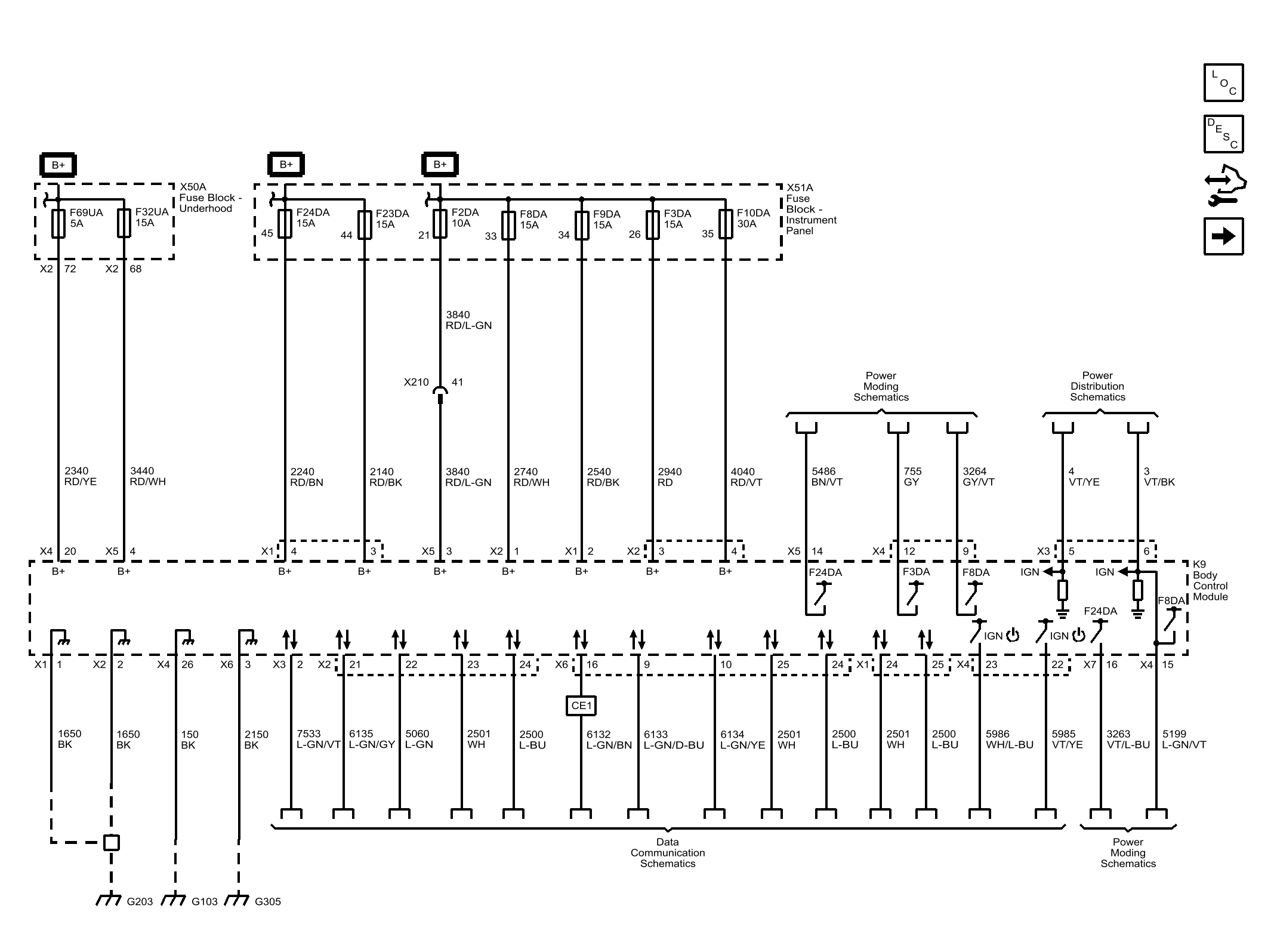

Fig 1: Power, Ground and Data Communication
GM3792655Courtesy of GENERAL MOTORS COMPANY
