Cadillac
›
2015
›
XTS Base
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Data Link Connector Power, Ground and Low Speed GMLAN
Data Link Connector Power, Ground and Low Speed GMLAN

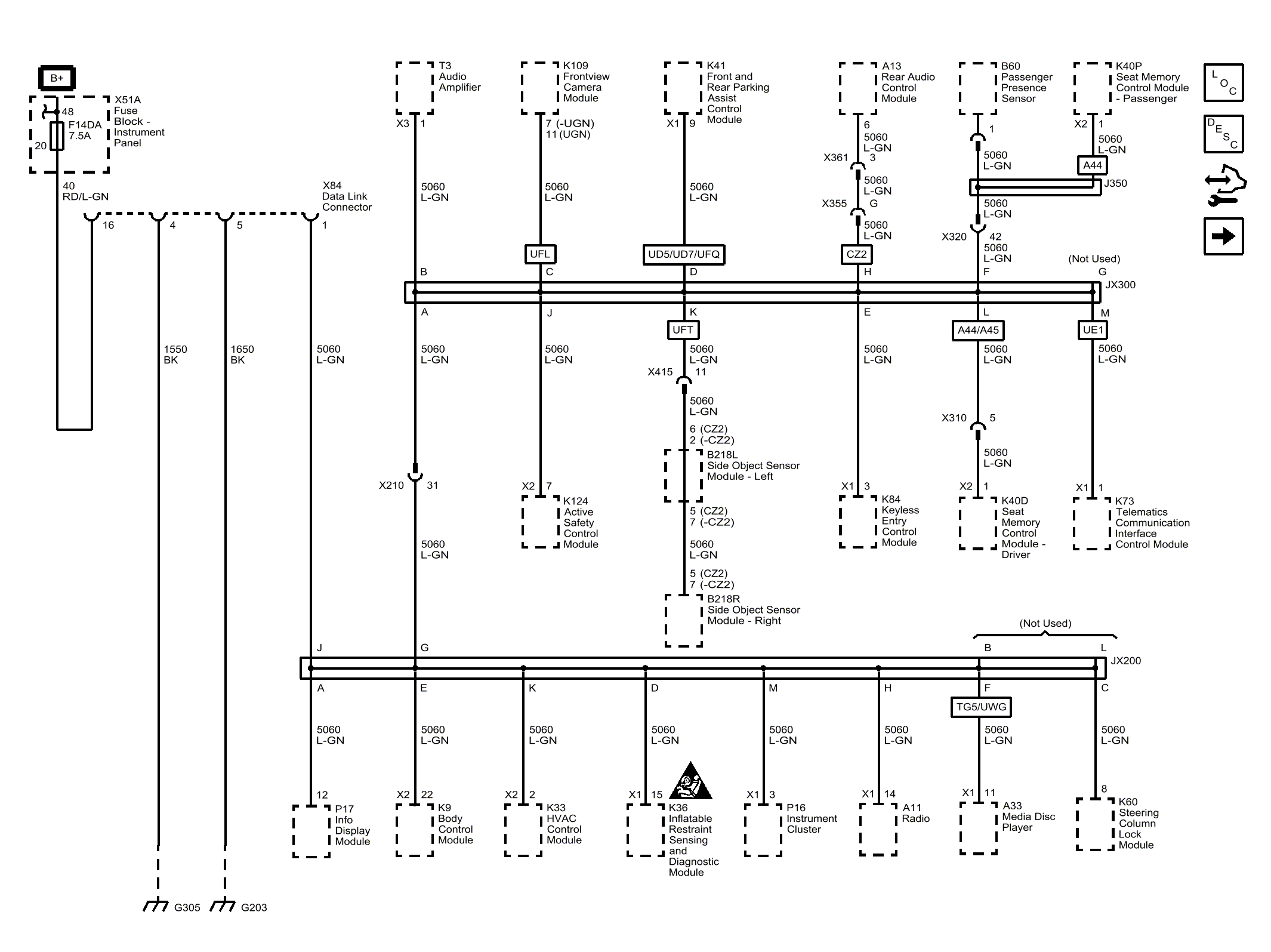

Fig 1: Data Link Connector Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
