Installation Procedure

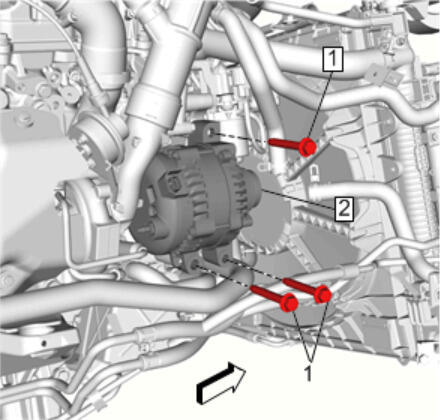

    Fig 1: Generator Bolt
    GM4277485Courtesy of GENERAL MOTORS COMPANY
  1. Generator - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt - Install and tighten 58 N.m (43 lb ft)

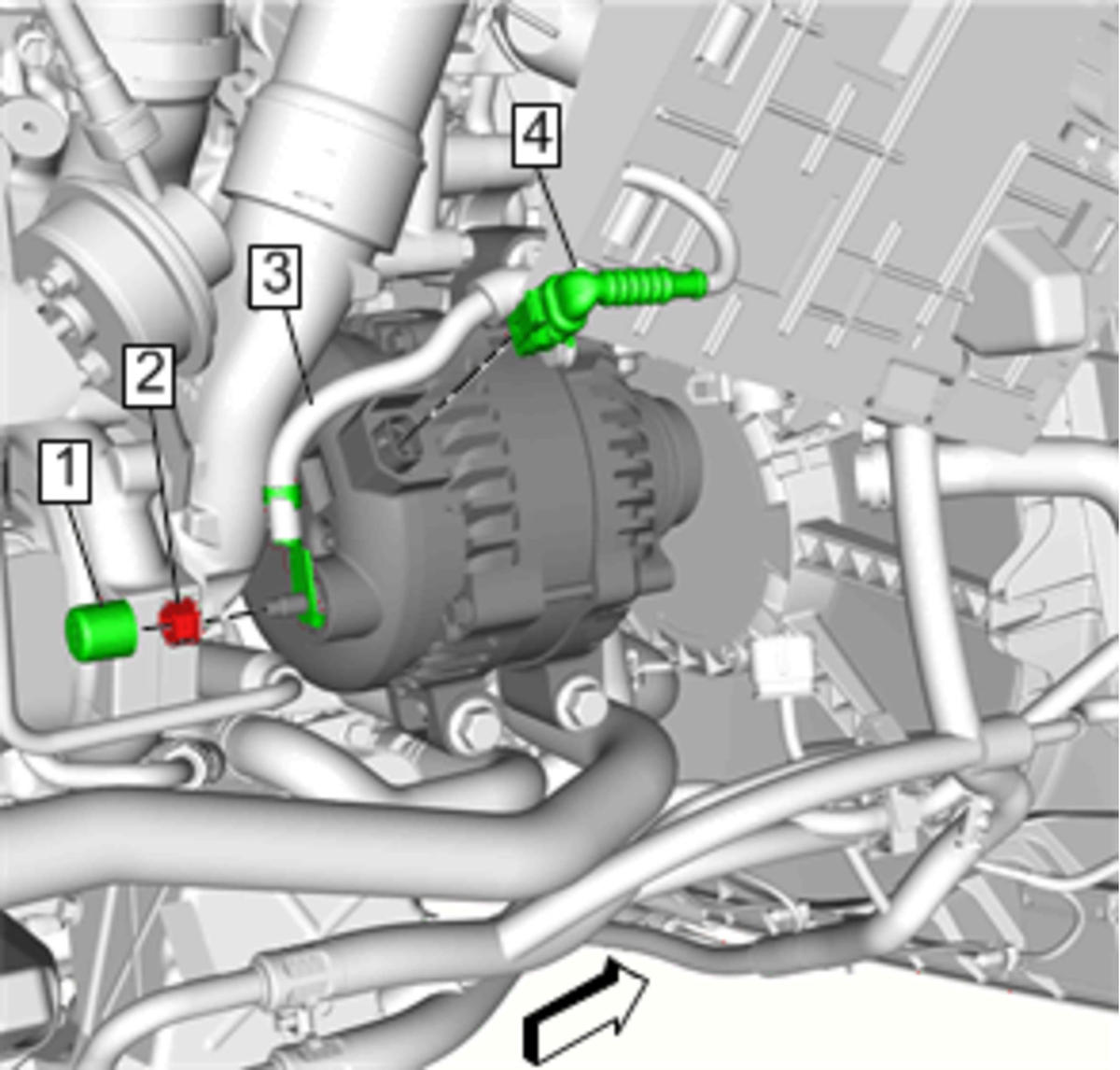

    3. Fig 2: Generator Electrical Connectors
    GM4277484Courtesy of GENERAL MOTORS COMPANY
  3. Electrical Connector - Connect
  4. Starter Solenoid Cable - Install
  5. Generator Nut - Install and tighten 15 N.m (11 lb ft)
  6. Protective Cap - Install

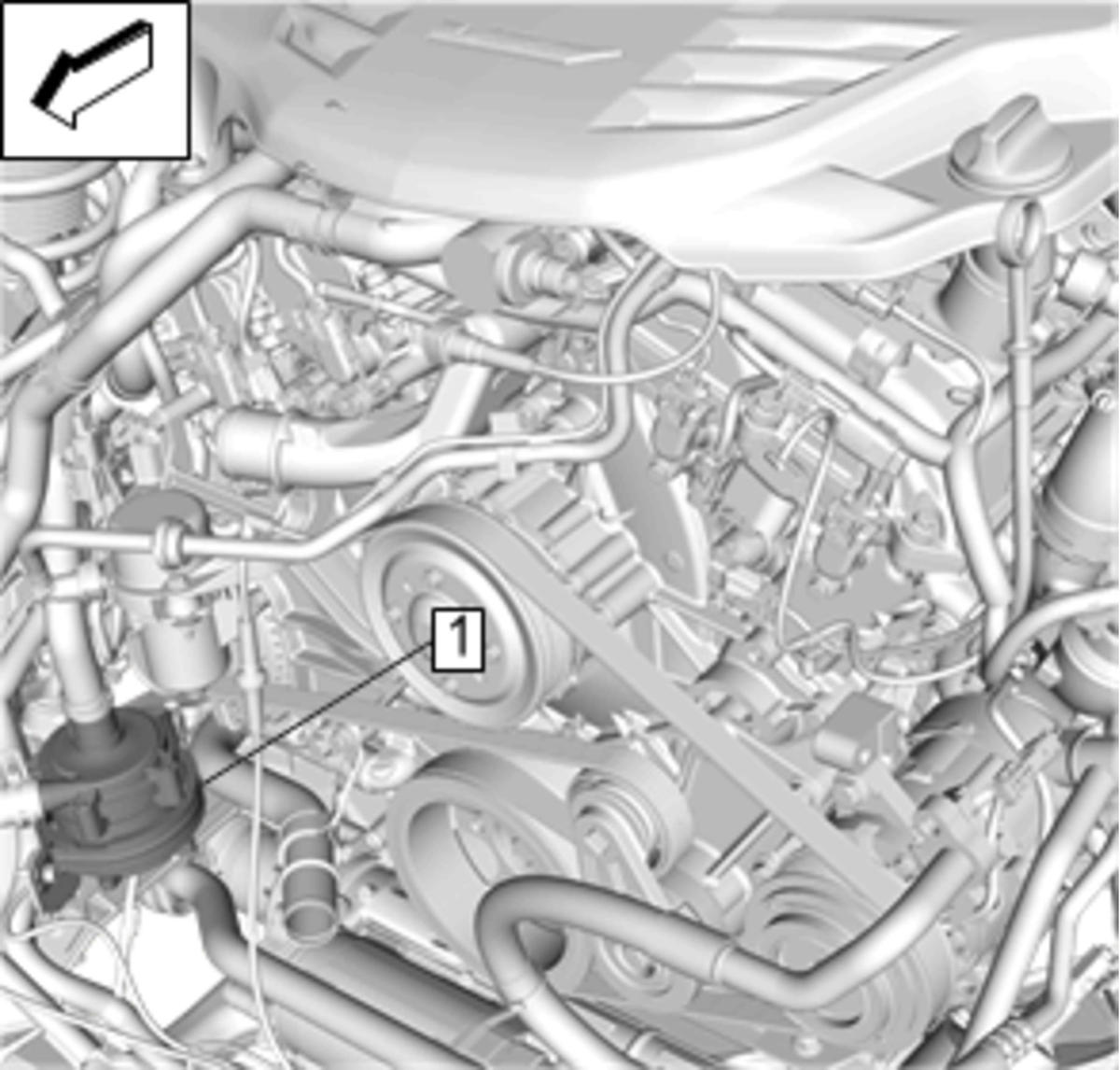

    7. Fig 3: Charge Air Cooler Coolant Pump
    GM4277609Courtesy of GENERAL MOTORS COMPANY
  7. Charge Air Cooler Coolant Pump - Install - Charge Air Cooler Coolant Pump Replacement (LF4)

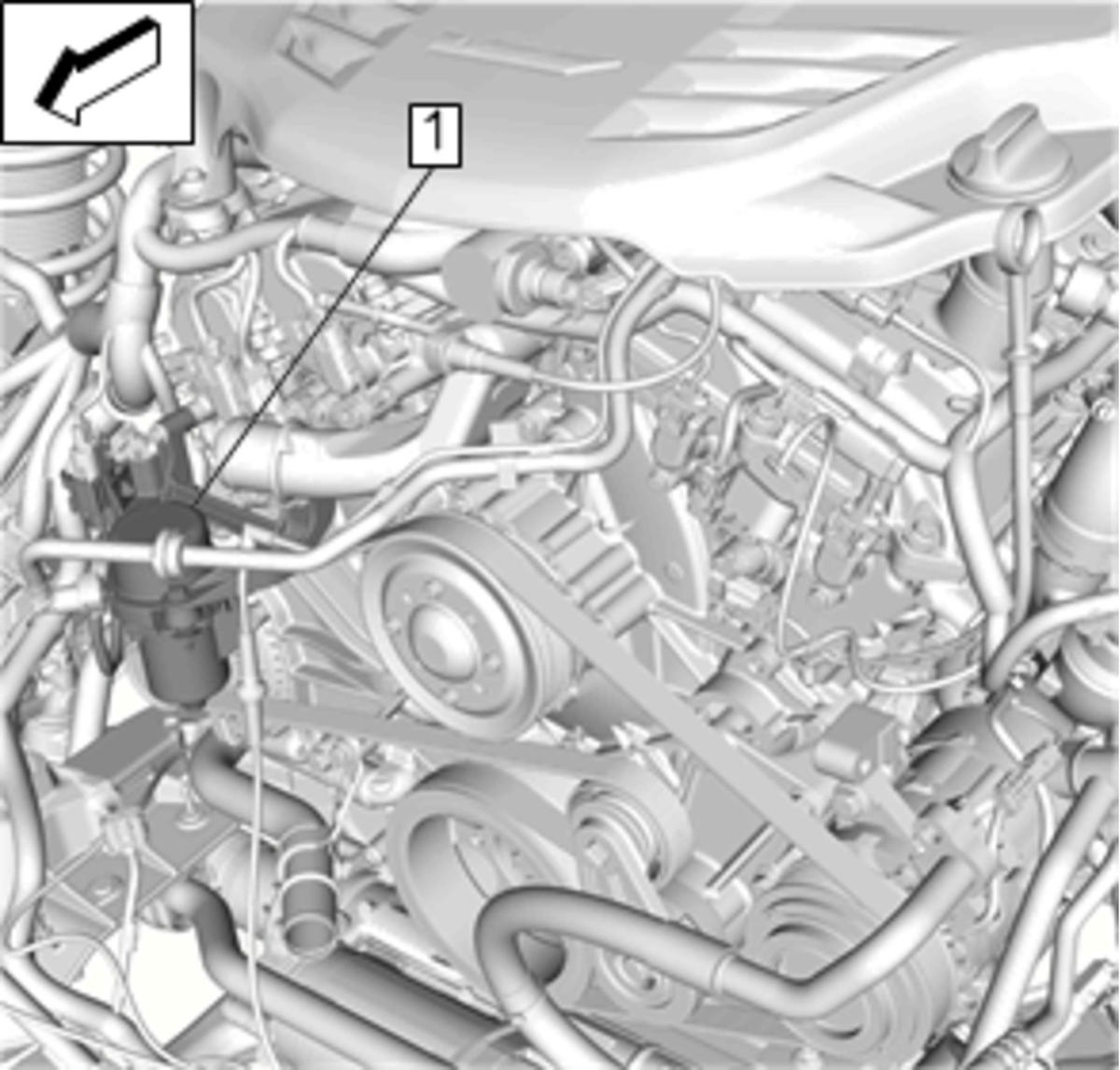

    8. Fig 4: Power Brake Booster Pump
    GM4277601Courtesy of GENERAL MOTORS COMPANY
  8. Power Brake Booster Pump - Install - Power Brake Booster Pump Replacement

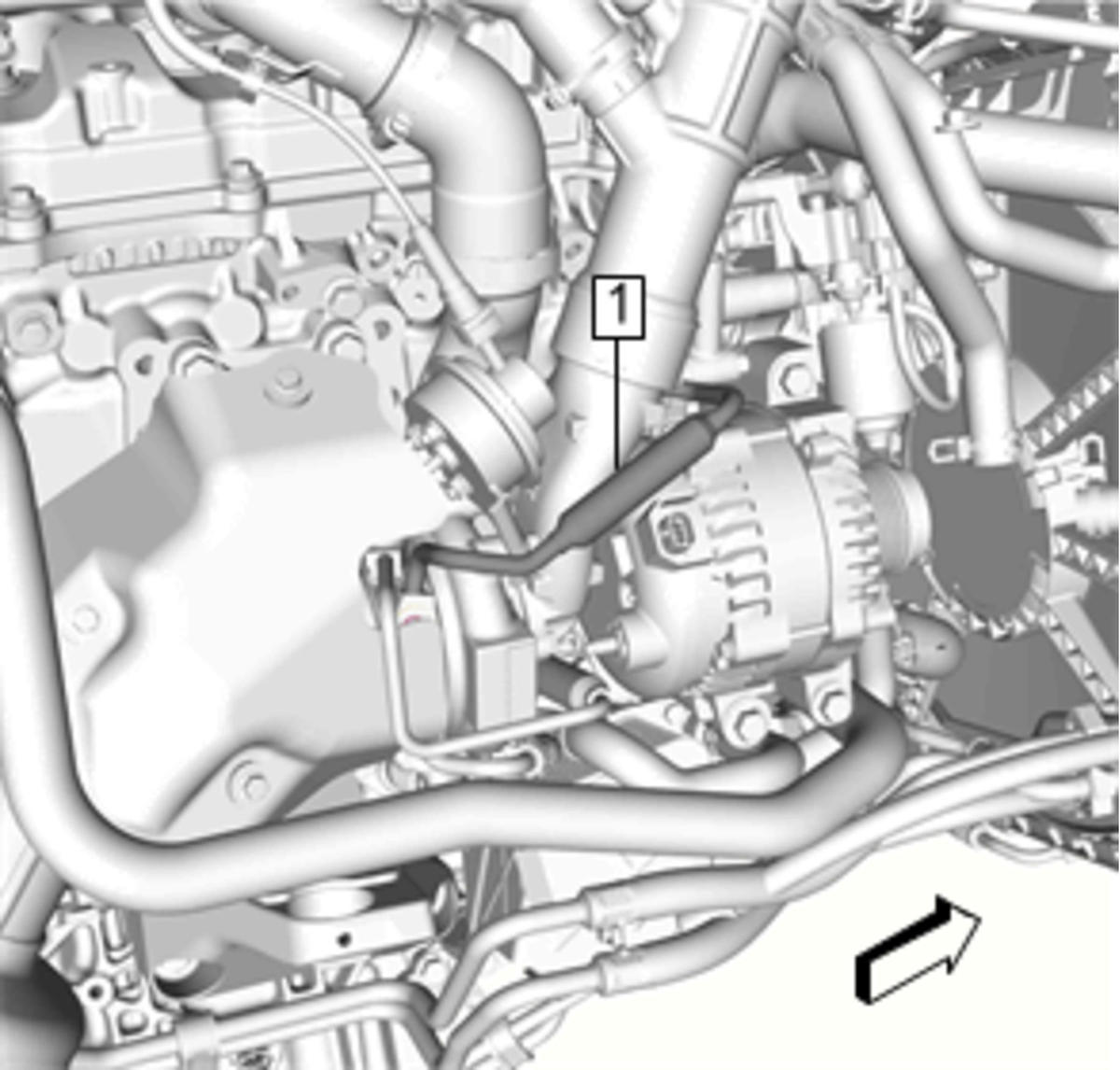

    9. Fig 5: Turbocharger Coolant Return Pipe
    GM4277467Courtesy of GENERAL MOTORS COMPANY
  9. Turbocharger Coolant Return Pipe - Install - Turbocharger Coolant Return Pipe Replacement (LF4 - Bank 1)Turbocharger Coolant Return Pipe Replacement (LF4 - Bank 2)
  10. Install the drive belt. Drive Belt Replacement (LF4)
  11. Drivetrain and Front Suspension Frame- Install - Drivetrain and Front Suspension Frame Removal and Installation (V-Series)Drivetrain and Front Suspension Frame Removal and Installation (Non V-Series)
  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
