Video Processing Module Bracket Replacement

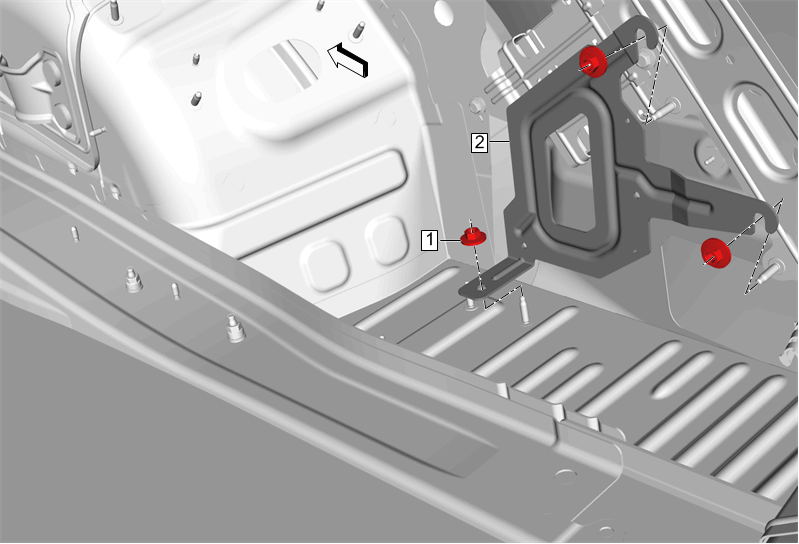

Fig 1: Video Processing Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Video Processing Module Replacement
1	Video Processing Module Bracket Nut [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Video Processing Module Bracket
