Windshield Side Reveal Molding Replacement
Windshield Side Reveal Molding Replacement

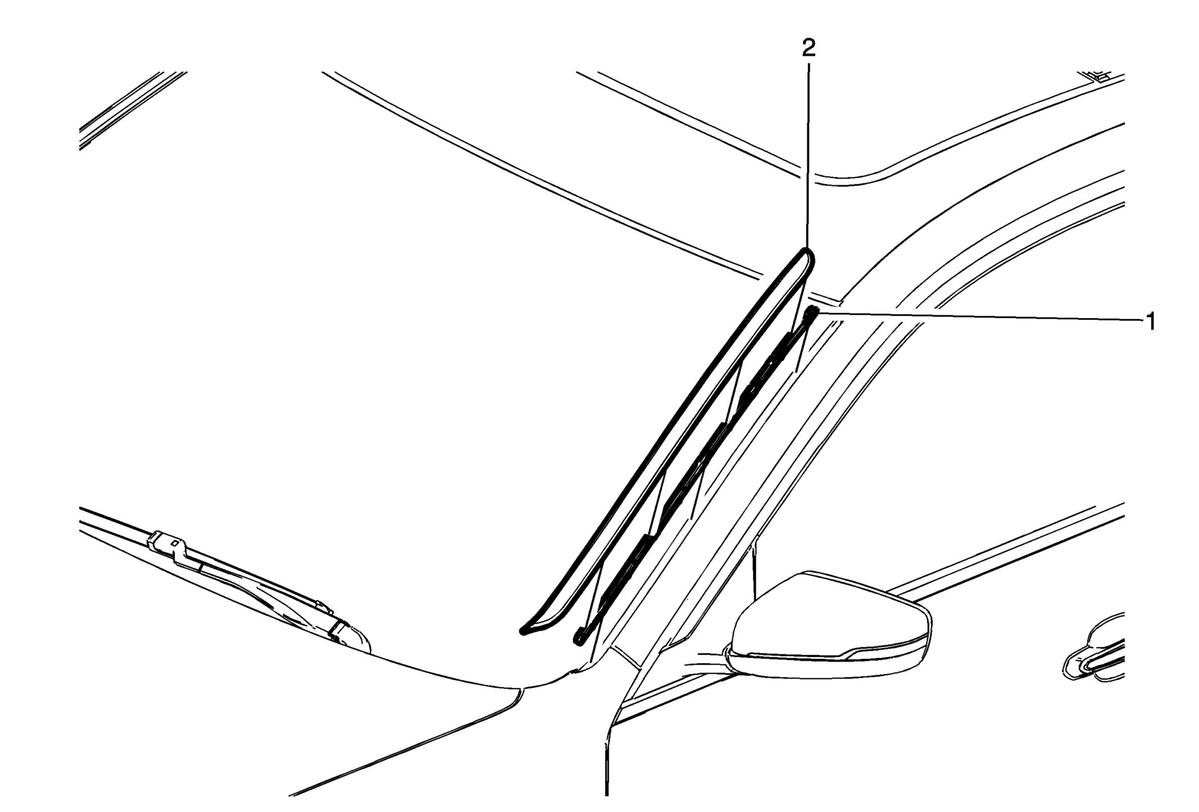

Fig 1: Windshield Side Reveal Molding
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Windshield Side Reveal Molding Retainer
2
Windshield Side Reveal Molding
