Intermediate Body Exhaust Heat Shield Replacement

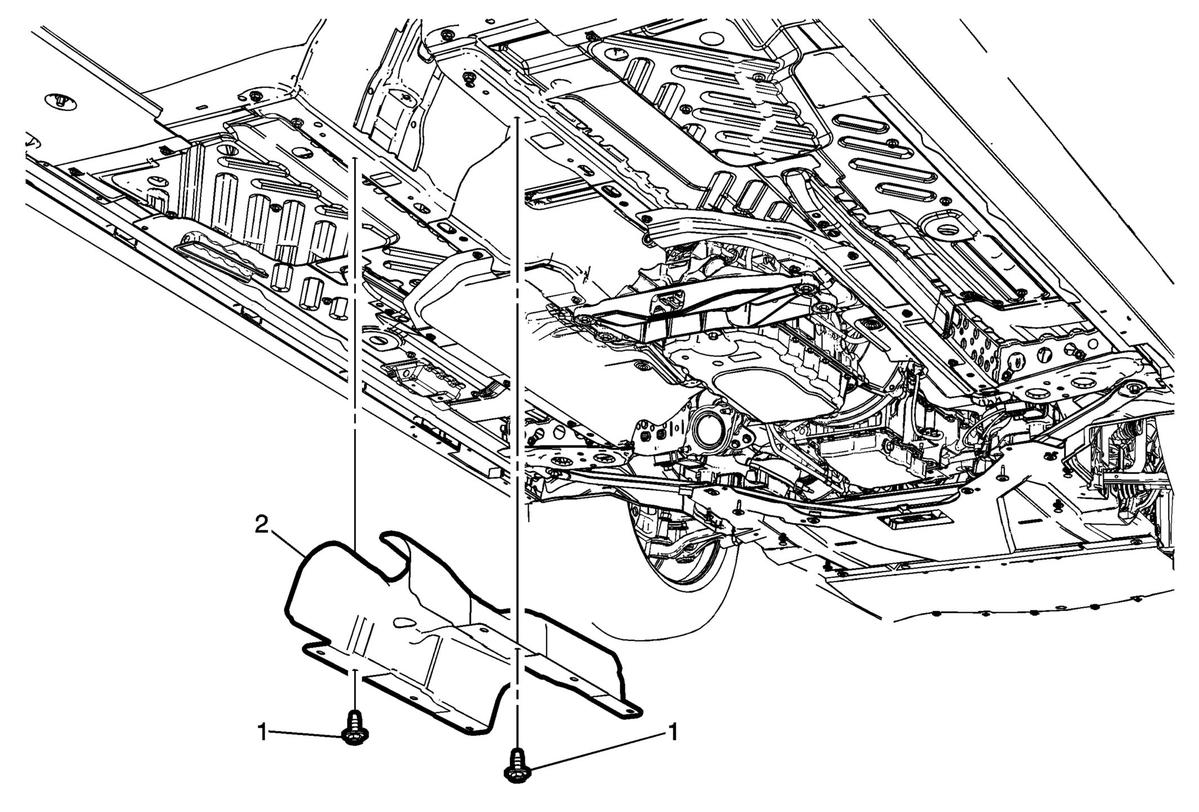

Fig 1: Intermediate Body Exhaust Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedures Remove the right side underbody front air deflector. Refer to Underbody Front Air Deflector Replacement - Right Side . Remove the left side underbody front air deflector. Refer to Underbody Front Air Deflector Replacement - Left Side . Lower the muffler. Refer to Exhaust Muffler Replacement (LT4) Exhaust Muffler Replacement (LTG) or Exhaust System Replacement (LF3, LGX) .
1	Intermediate Body Exhaust Heat Shield Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Intermediate Body Exhaust Heat Shield

Callout

Component Name

WARNING: Refer to Exhaust Service Warning .

WARNING: Refer to Eye Protection Warning .

Preliminary Procedures

Intermediate Body Exhaust Heat Shield Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Intermediate Body Exhaust Heat Shield
