Air Cleaner Outlet Duct Replacement

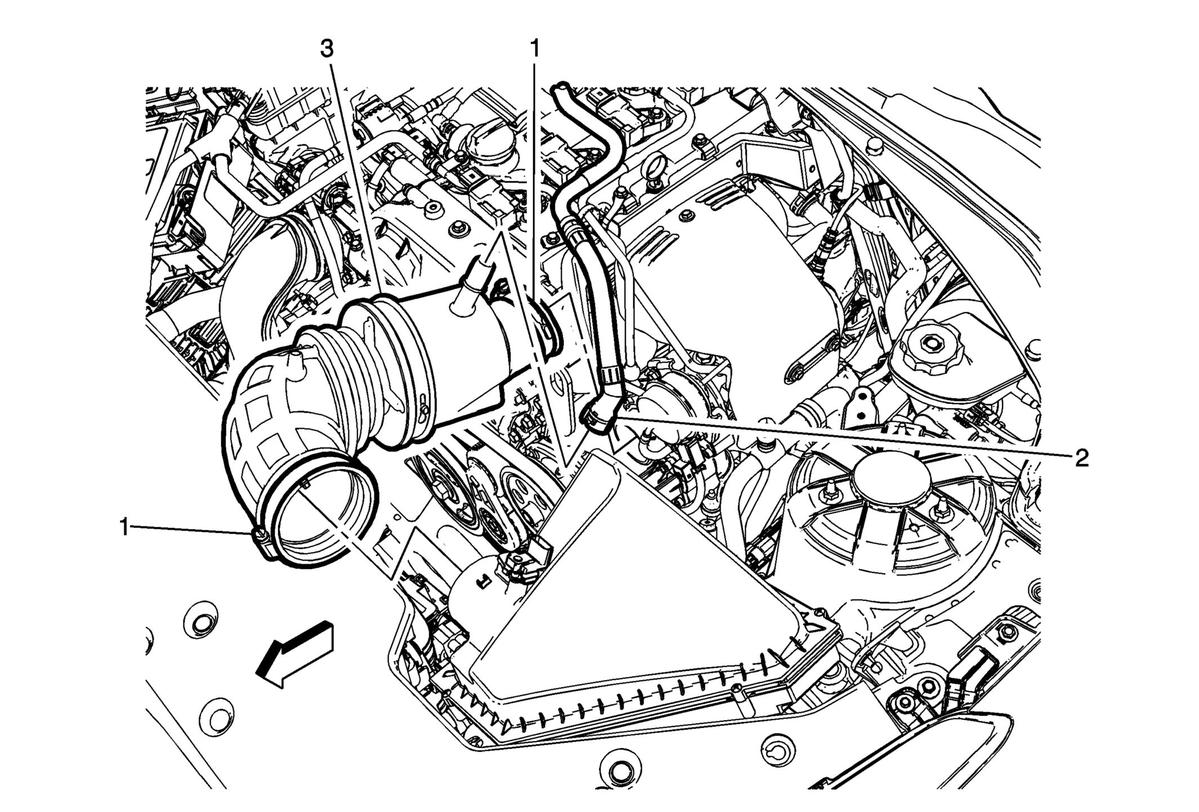

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamps (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 2 | PCV Tube |
| 3 | Air Cleaner Outlet Duct Procedure Disconnect the MAF sensor harness from the air cleaner outlet duct. |
