Fuel Pressure Sensor Replacement - Fuel Feed Pipe

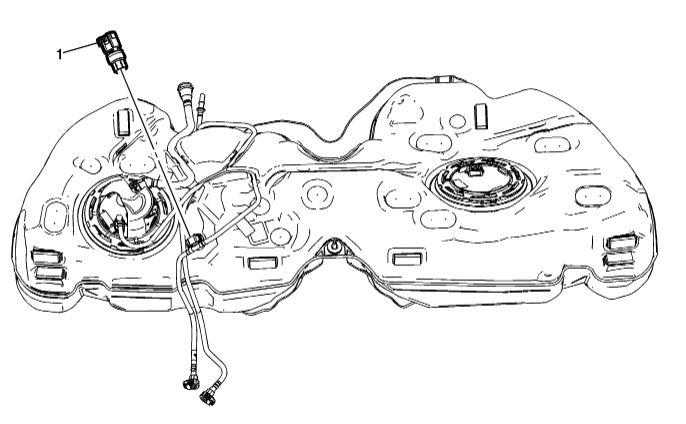

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect electrical connector and unclip sensor from retainer.
