Intake Air Splash Shield Replacement

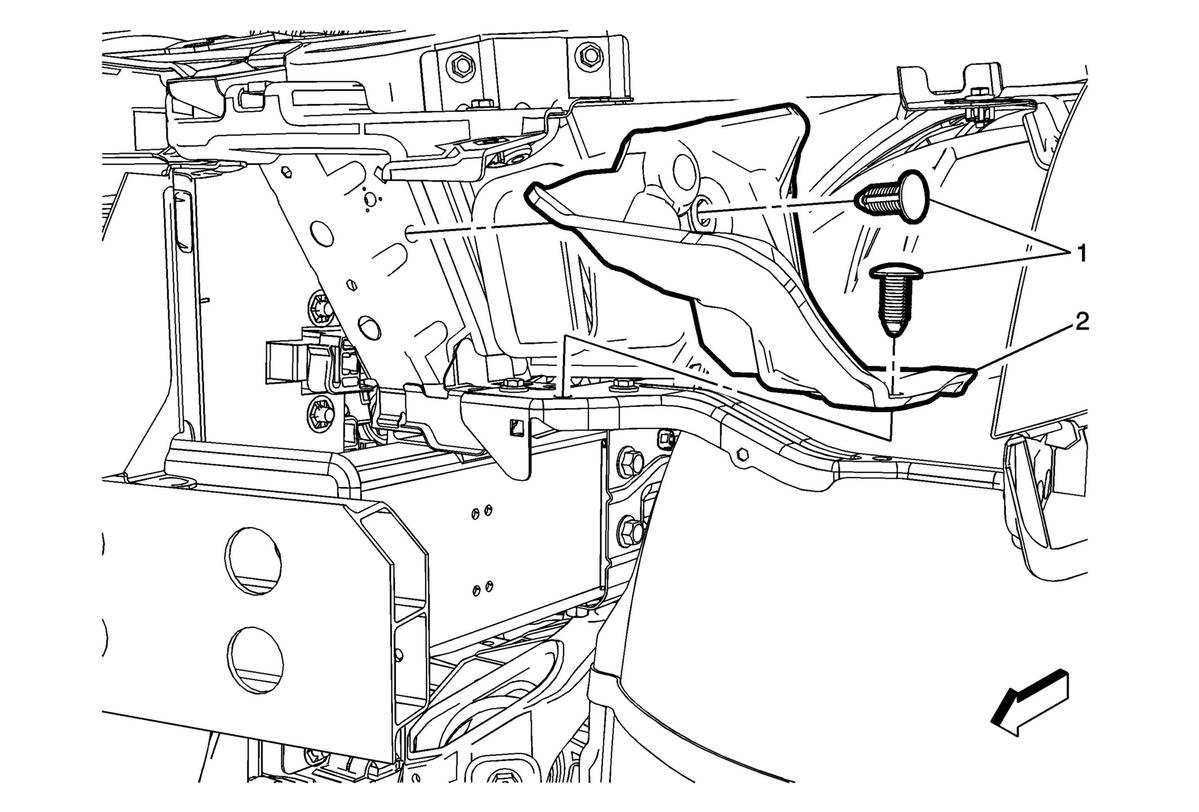

Fig 1: Intake Air Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Intake Air Splash Shield Retainers (Qty: 2)
2	Intake Air Splash Shield
