Data Link Connector Power, Ground, Low Speed GMLAN and Side Object High Speed GMLAN

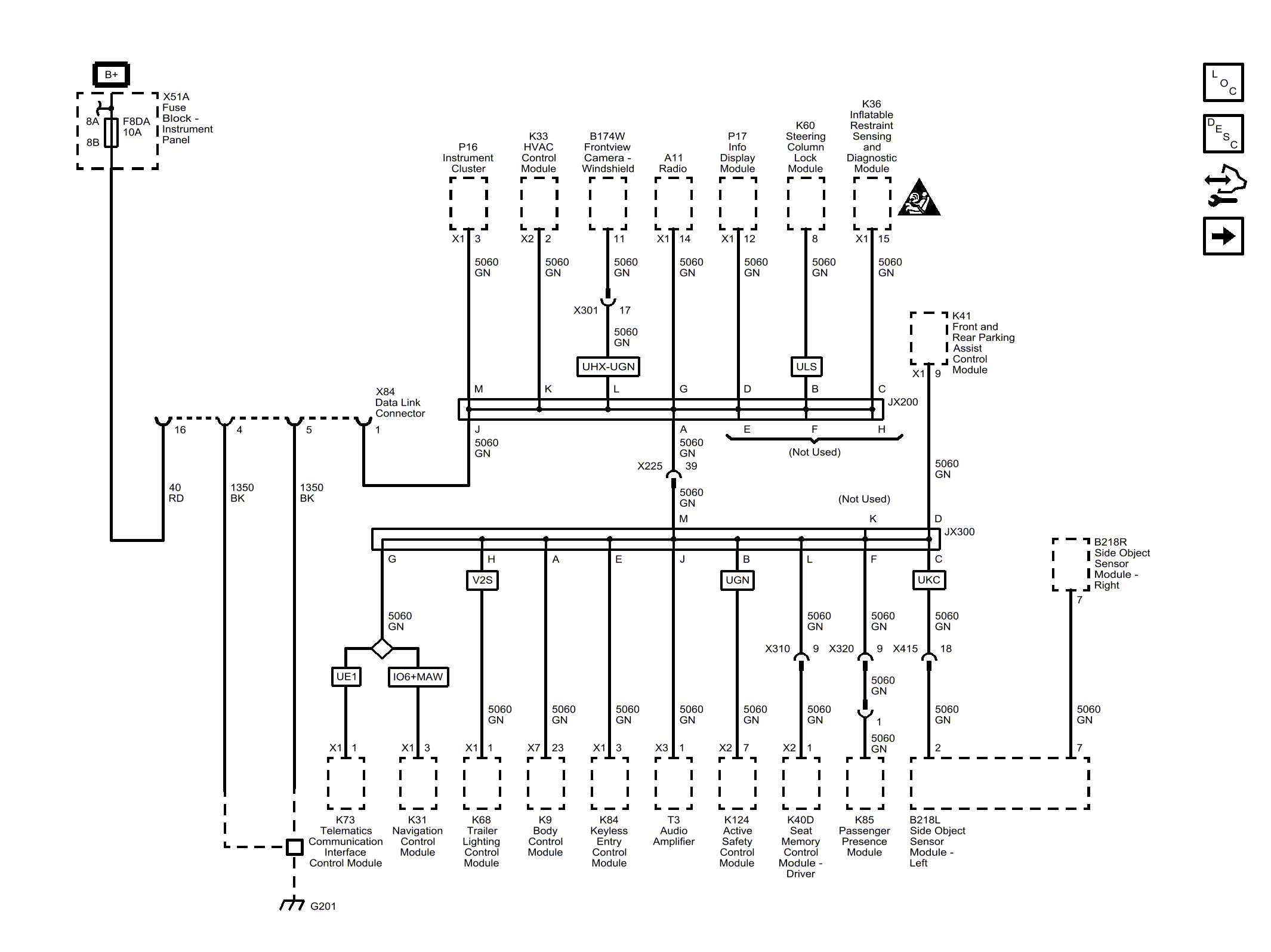

Fig 1: Data Link Connector Power, Ground, Low Speed GMLAN and Side Object High Speed GMLAN
GM4078783Courtesy of GENERAL MOTORS COMPANY
