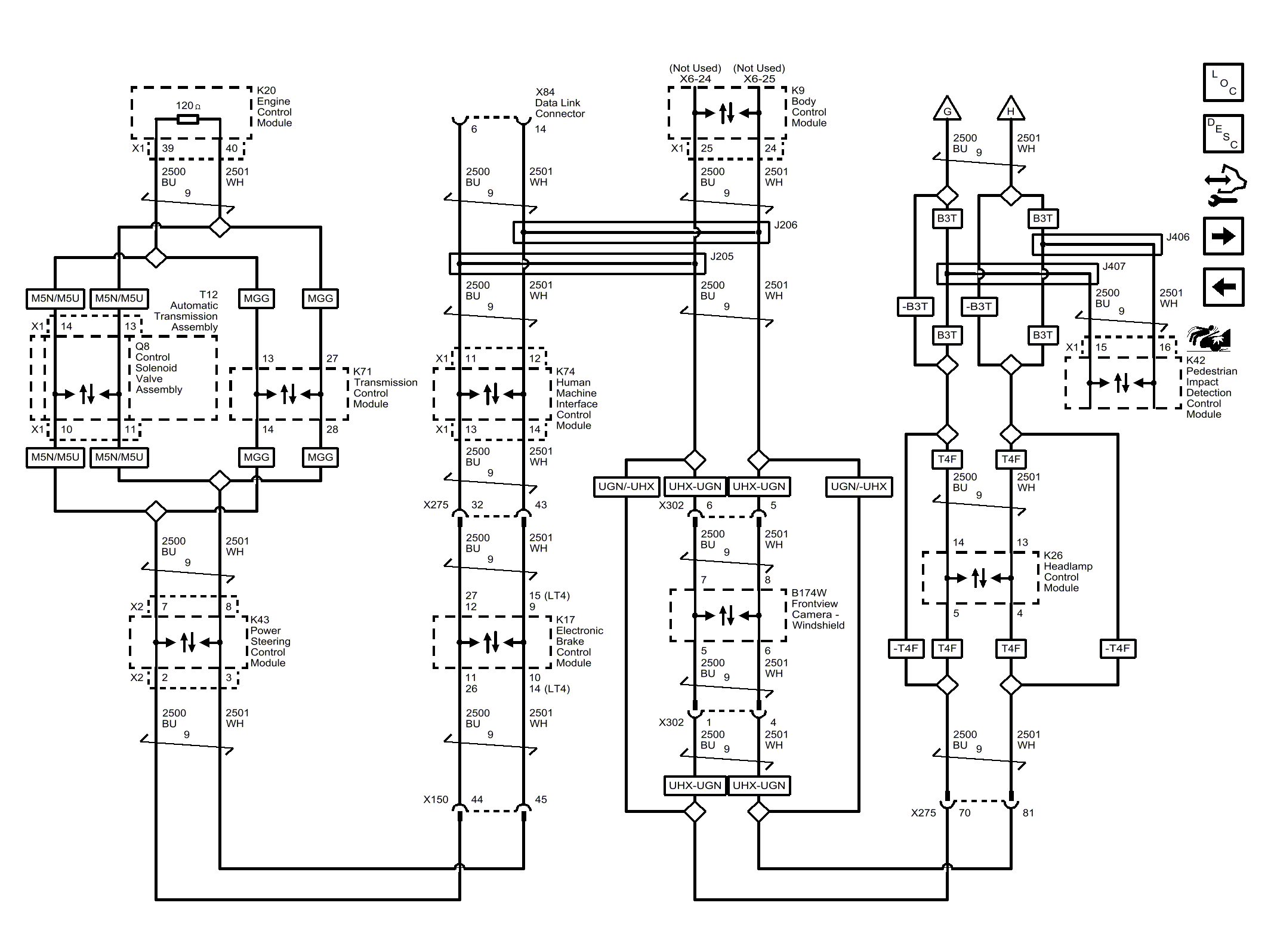

Home › Cadillac › 2016 › CTS Base, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › High Speed GMLAN (1 of 2)
