Linear Interconnect Network (LIN) Bus (3 of 3)

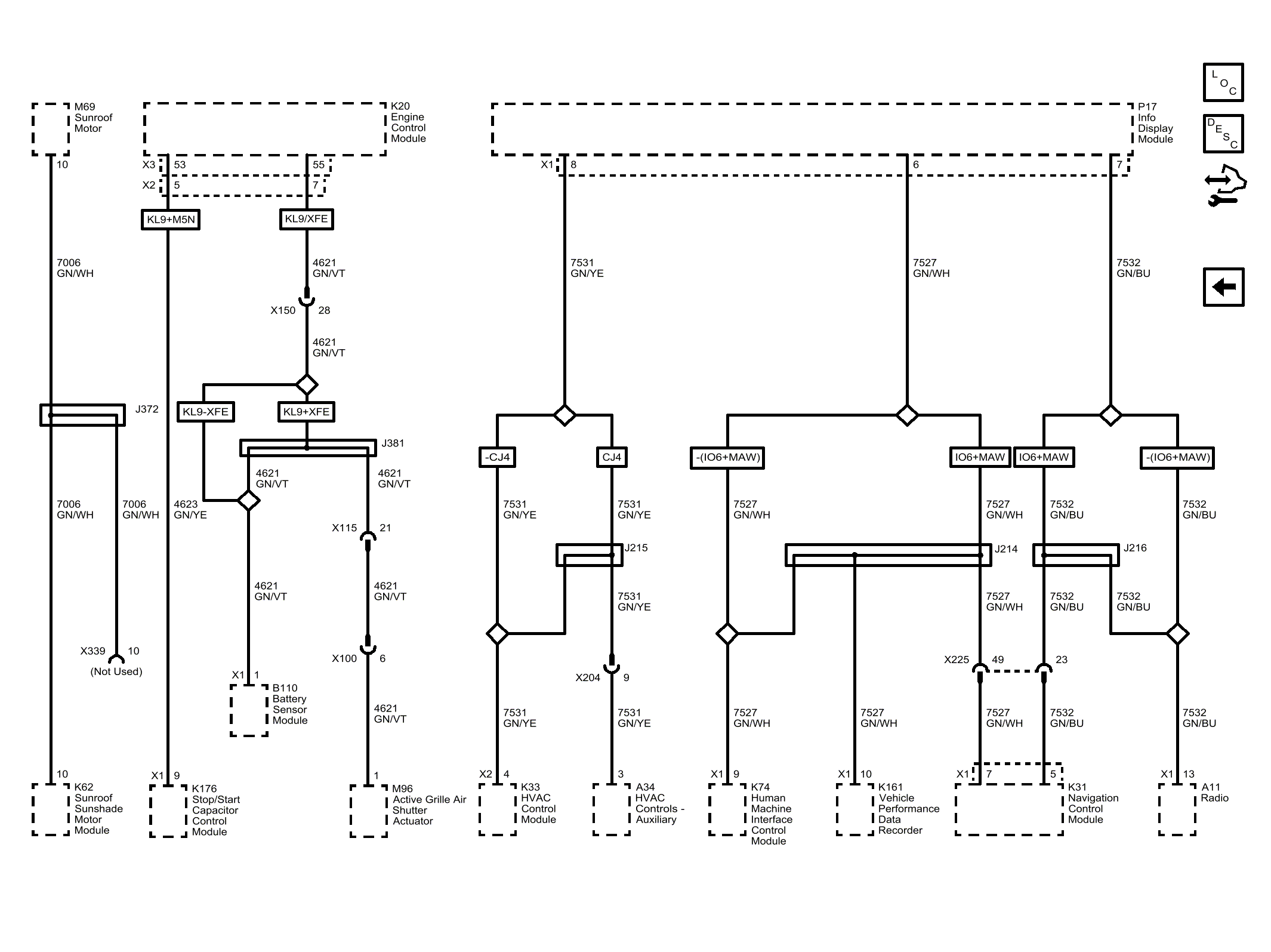

Fig 1: Linear Interconnect Network (LIN) Bus (3 of 3)
GM4078797Courtesy of GENERAL MOTORS COMPANY
