Data Communication Wiring Schematics
›
Most BUS and Communications Enable
Most BUS and Communications Enable

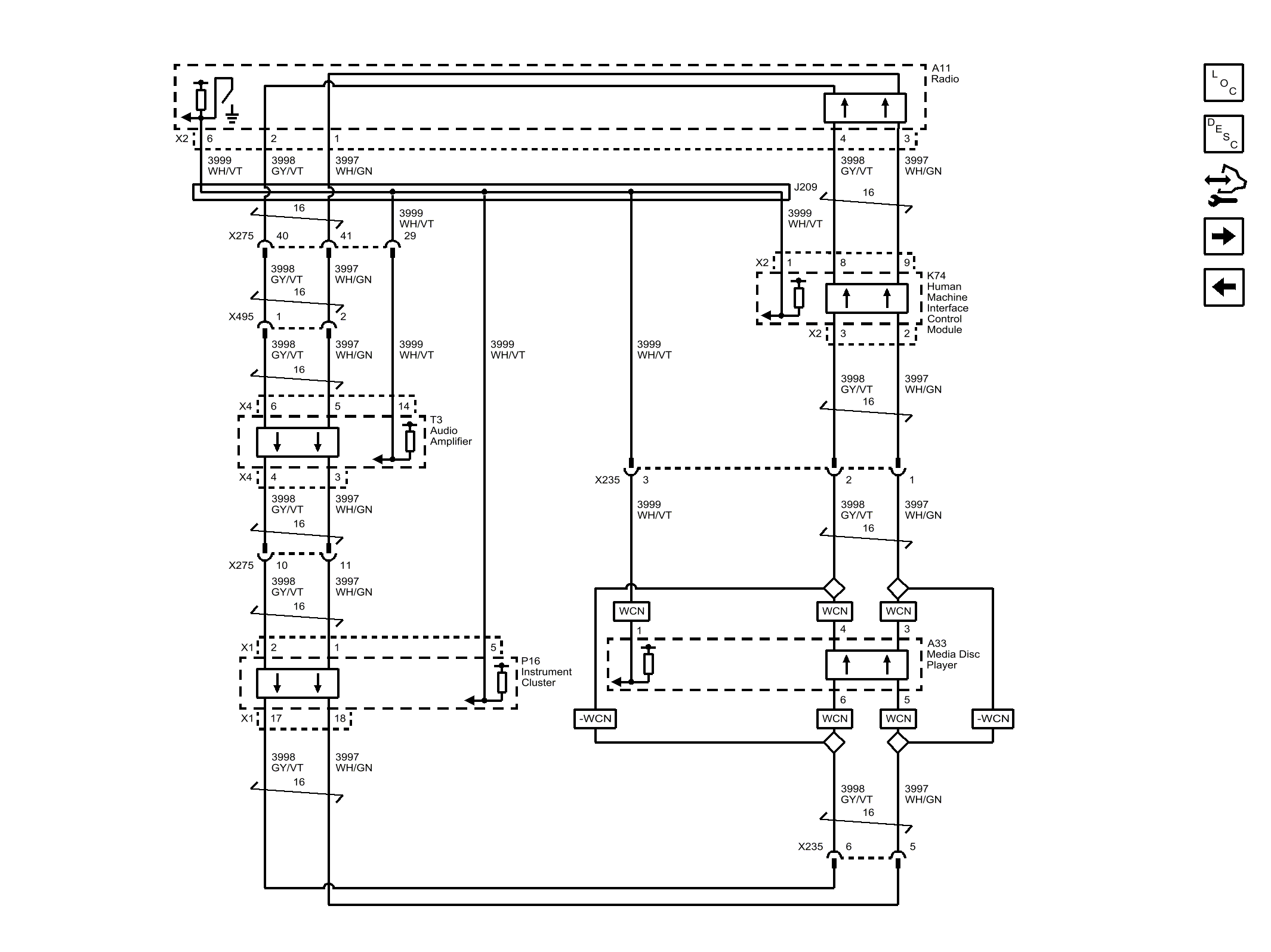

Fig 1: Most BUS and Communications Enable
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
