Object GMLAN Communications Enable (UGN or UVZ)
Object GMLAN Communications Enable (UGN or UVZ)

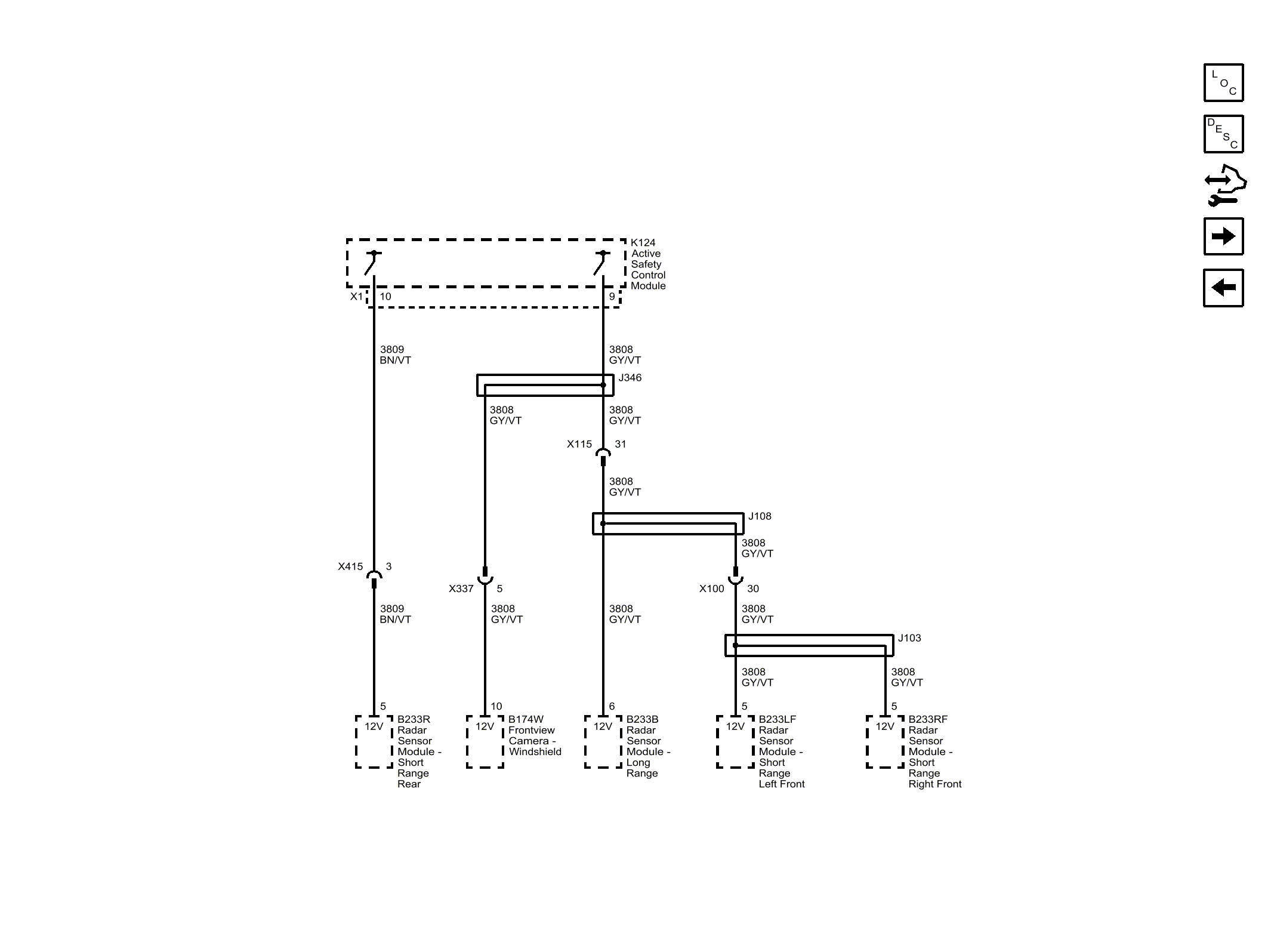

Fig 1: Object GMLAN Communications Enable (UGN or UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
