Object High Speed GMLAN (UGN with UVZ)

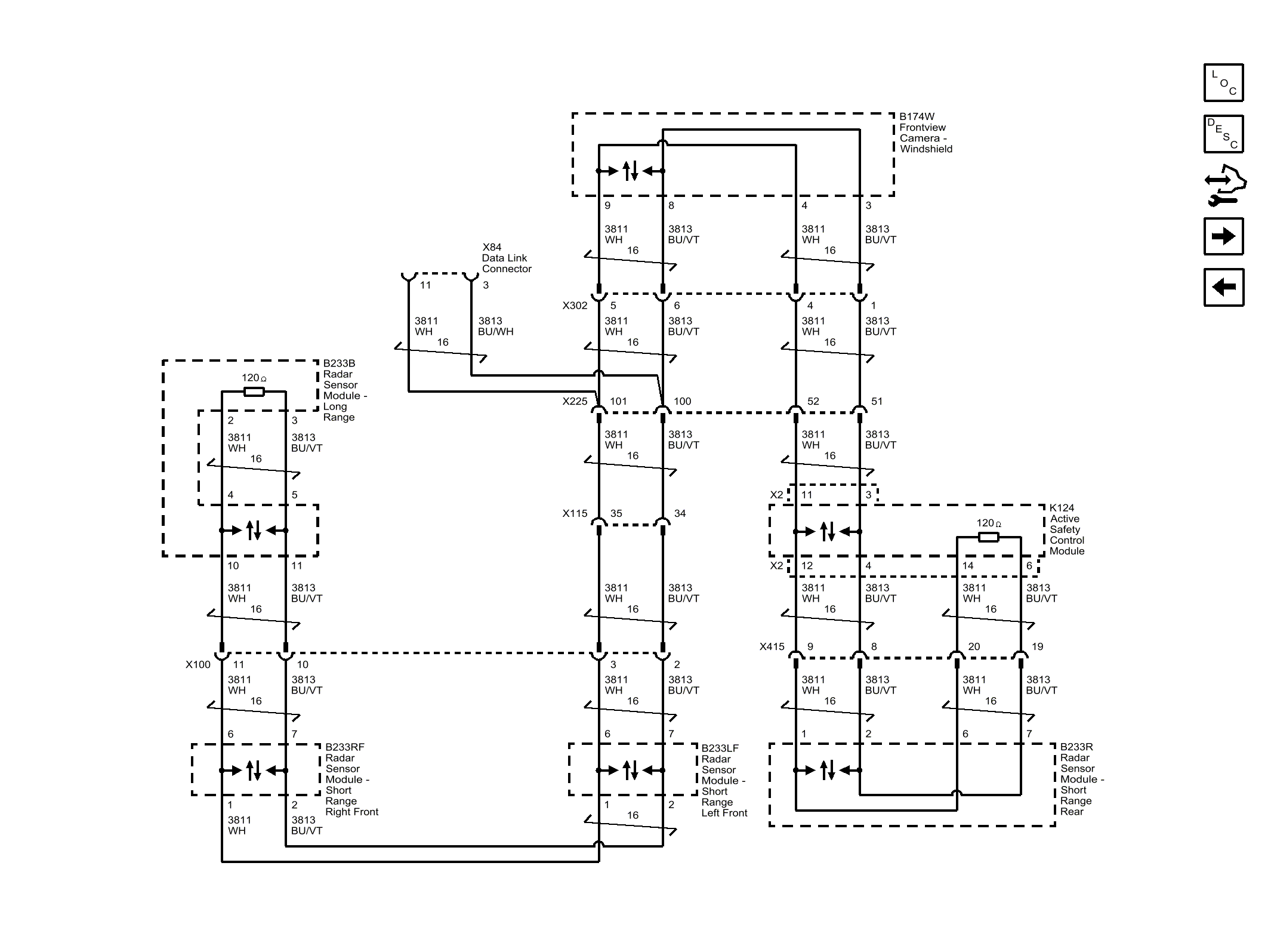

Fig 1: Object High Speed GMLAN (UGN with UVZ)
GM4078789Courtesy of GENERAL MOTORS COMPANY
