Object High Speed GMLAN (UGN without UVZ)

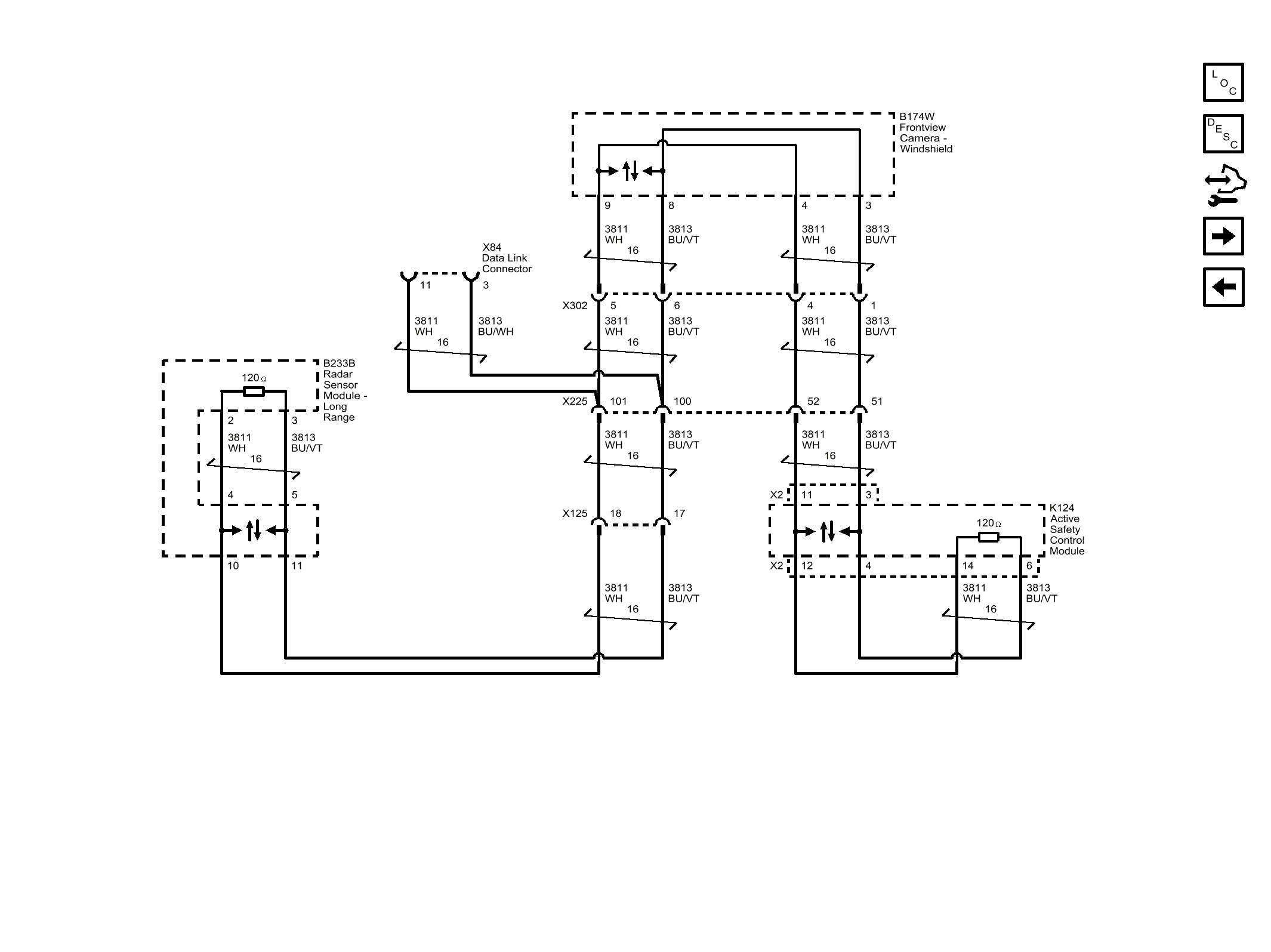

Fig 1: Object High Speed GMLAN (UGN without UVZ)
GM4078791Courtesy of GENERAL MOTORS COMPANY
