Data Communication Wiring Schematics
›
Powertrain High Speed GMLAN (G96)
Powertrain High Speed GMLAN (G96)

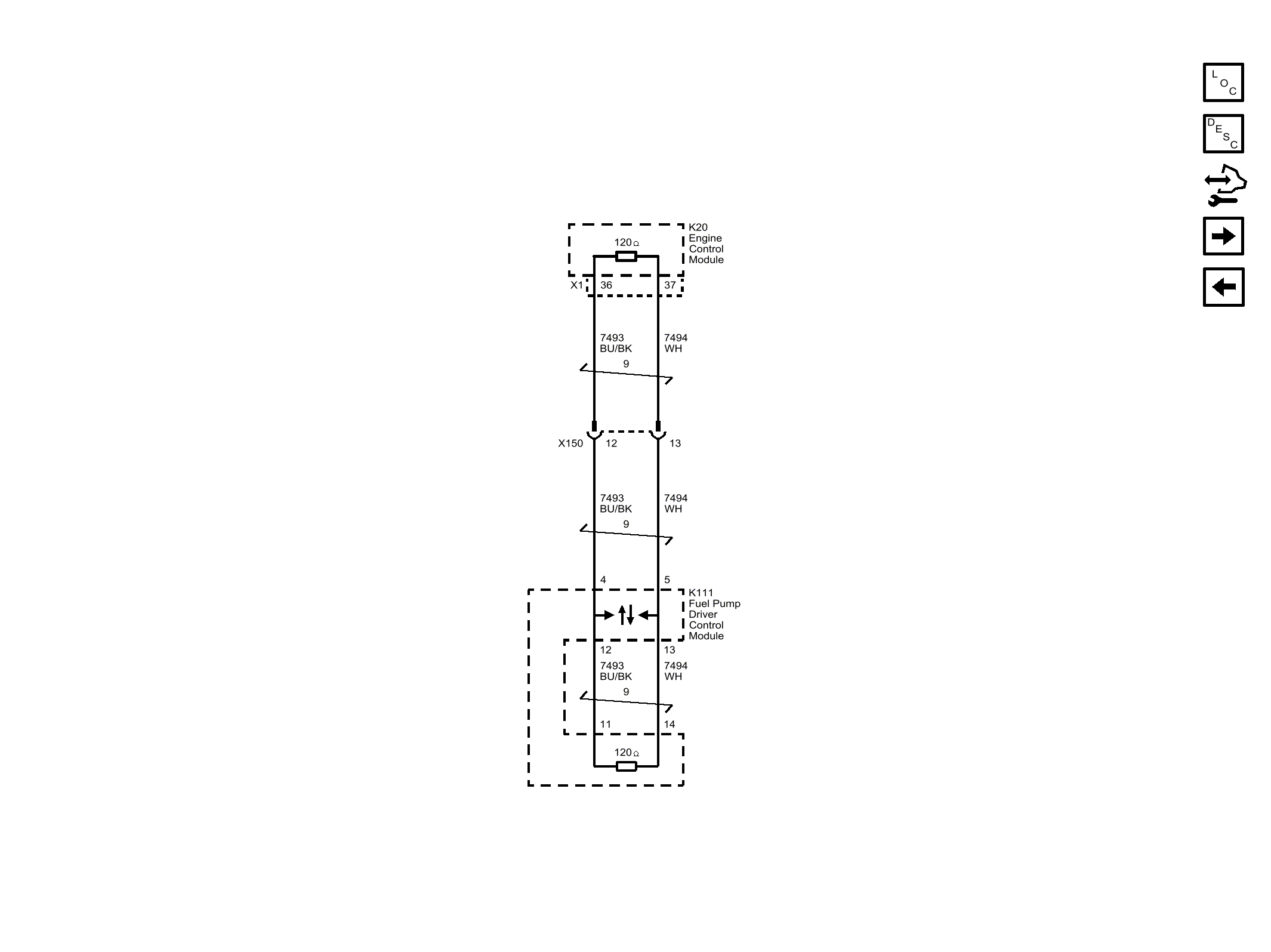

Fig 1: Powertrain High Speed GMLAN (G96)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
