Section 67 (Keyless Entry System And Remote Functions (Coupe))
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Easy Keyless Entry (ATH)
Easy Keyless Entry (ATH)
WARNING:
This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

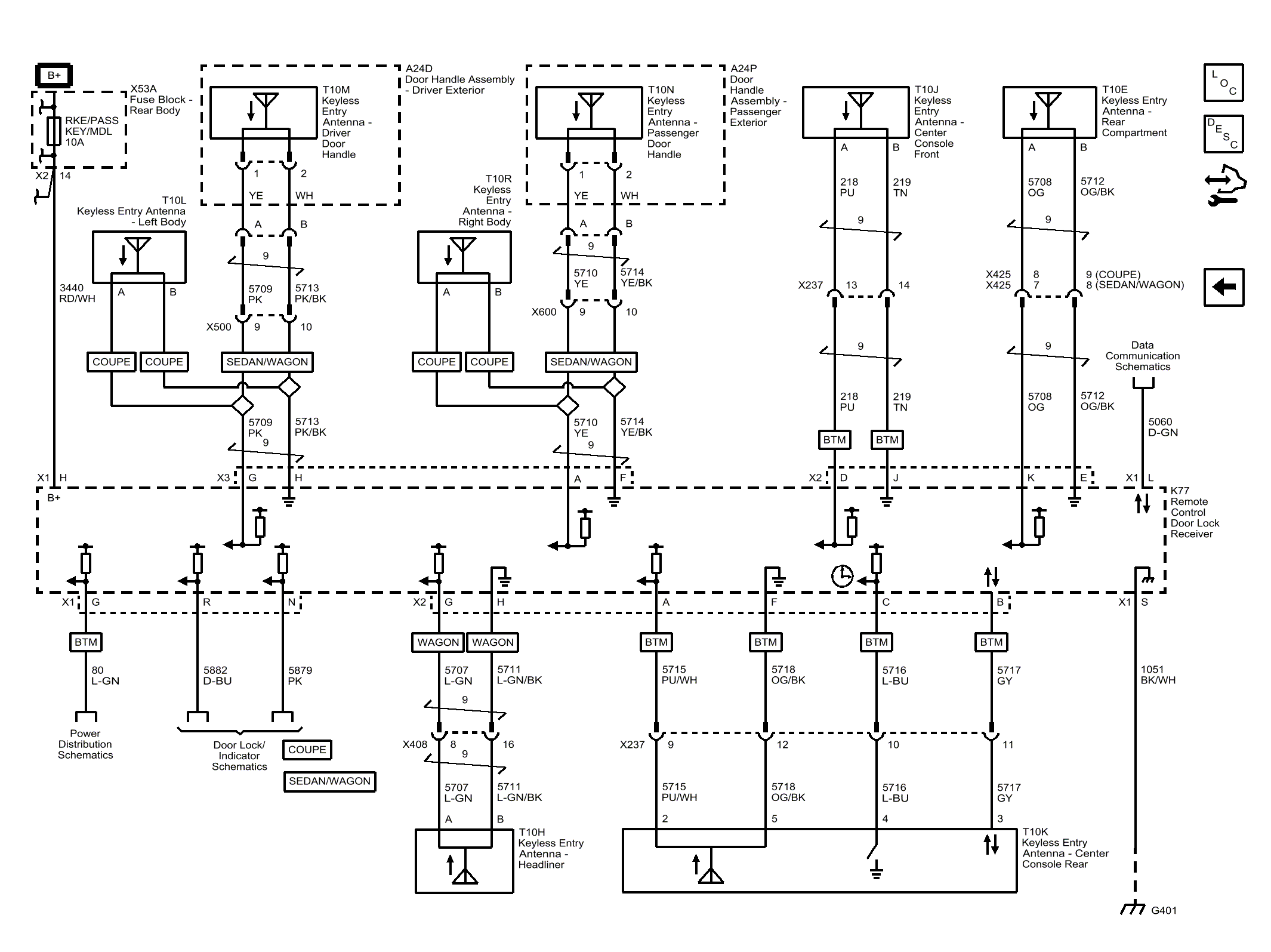

Fig 1: Easy Keyless Entry (ATH)
Courtesy of GENERAL MOTORS COMPANY
