Engine Coolant Temperature Sensor Replacement

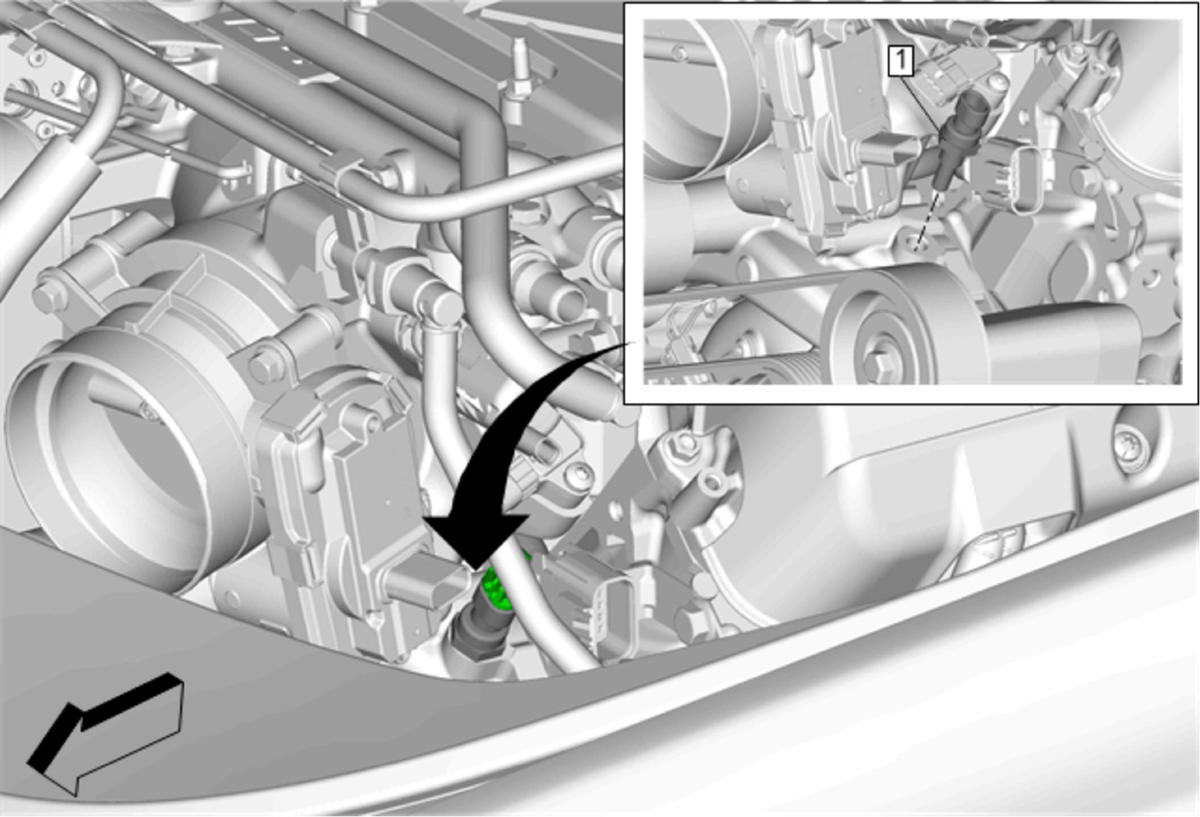

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement - Front Air Cleaner Assembly Replacement Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (GE 47716)
1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector from the engine coolant temperature sensor. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedure

Engine Coolant Temperature Sensor

CAUTION: Refer to Component Fastener Tightening Caution .

Procedure
Disconnect the electrical connector from the engine coolant temperature sensor.
Tighten
20 N.m (15 lb ft)
