Fuel Feed Front Hose Replacement

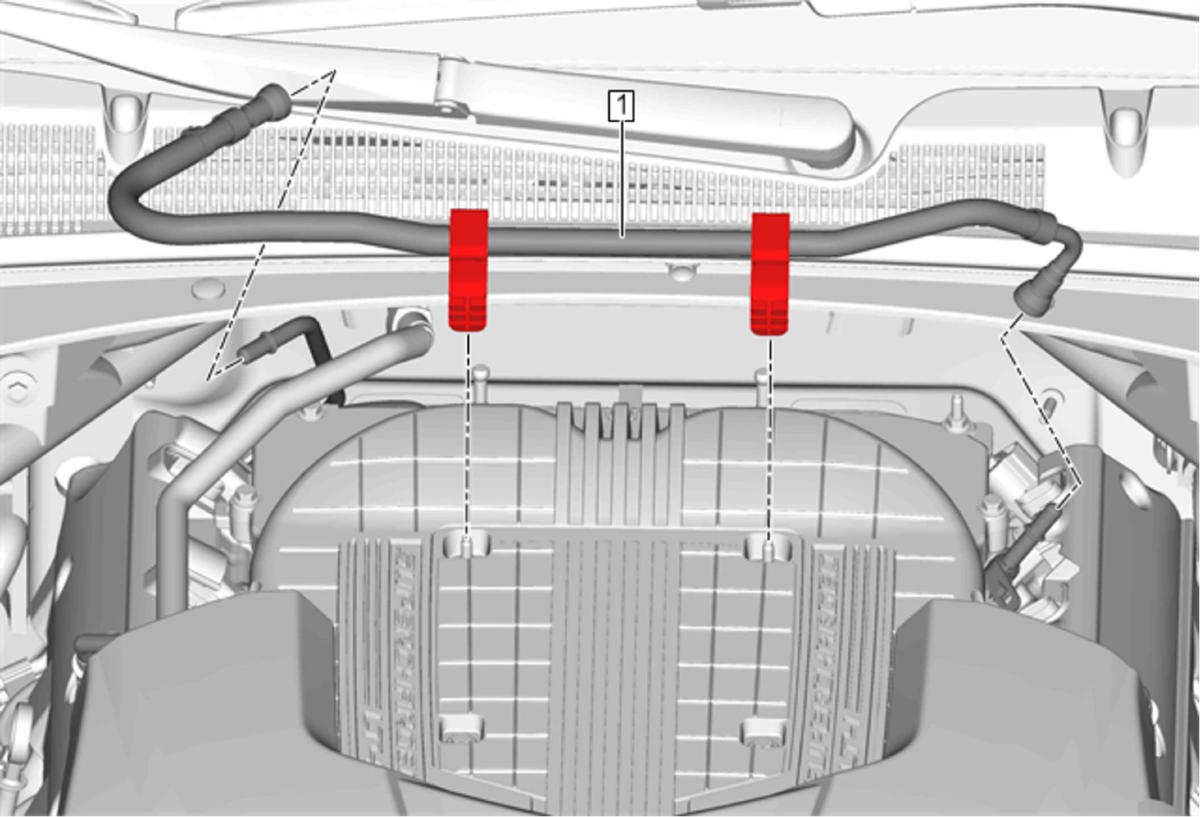

Fig 1: Fuel Feed Front Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Fuel Pressure Relief Intake Manifold Cover Insulator Replacement
1	Fuel Feed Front Hose Procedure Disconnect quick connect fittings and remove from retainers. Refer to Metal Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedure

Fuel Feed Front Hose
Procedure
Disconnect quick connect fittings and remove from retainers. Refer to Metal Collar Quick Connect Fitting Service
