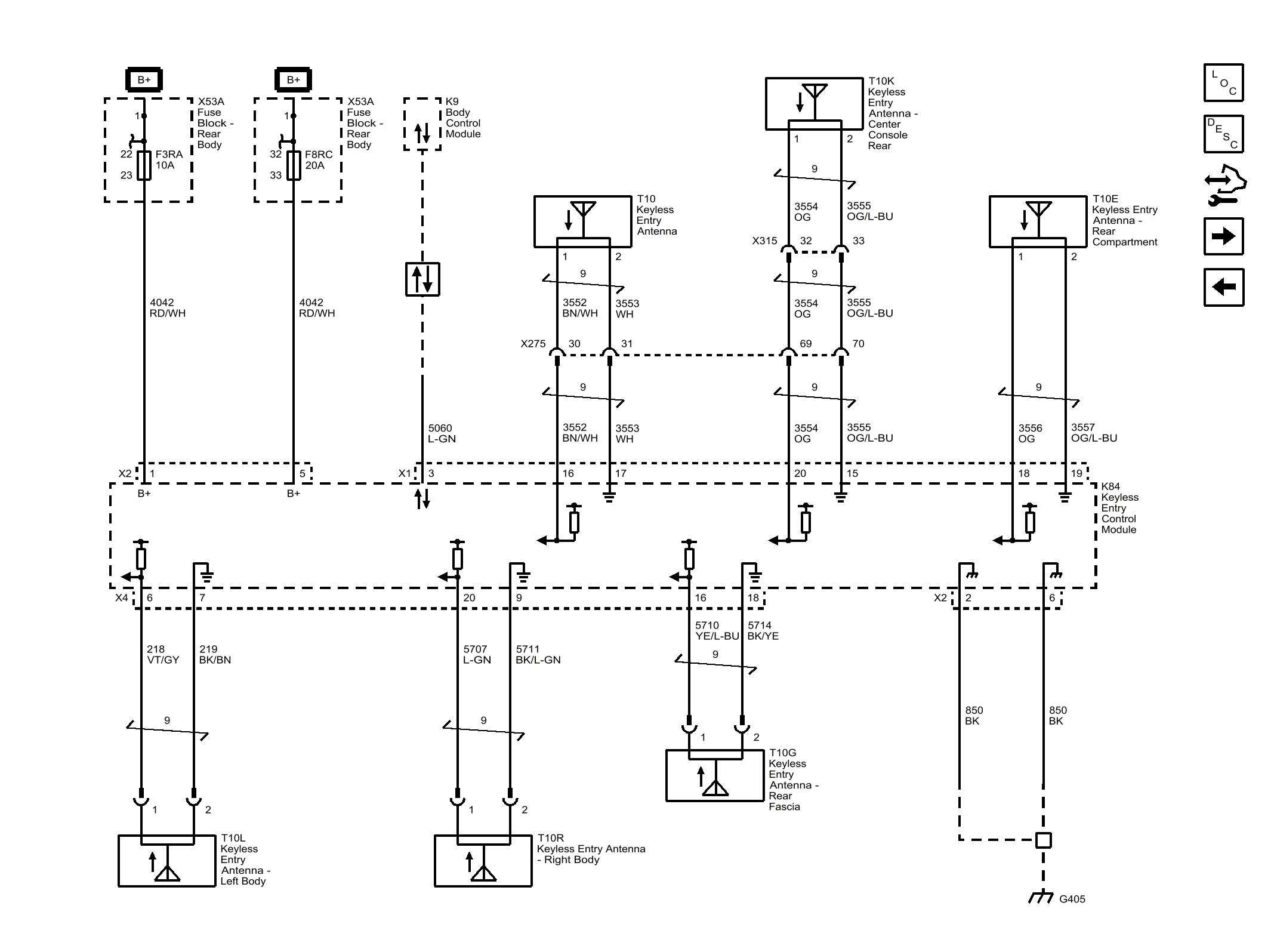

Home › Cadillac › 2016 › ELR › Repair and Diagnosis › Accessories & Equipment › Anti-Theft Systems › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Passive Start
