Forward Collision Alert Display Replacement

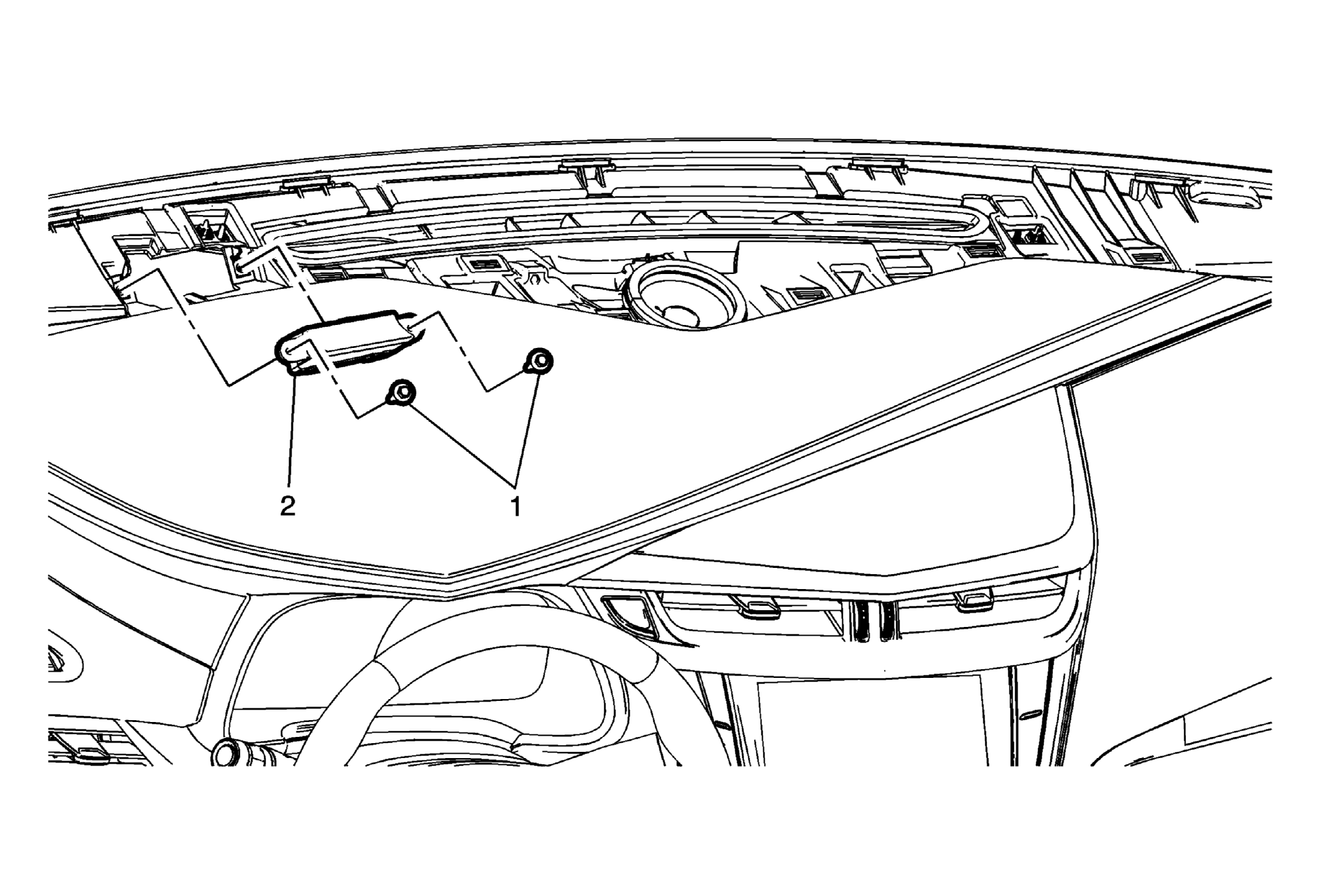

Fig 1: Forward Collision Alert Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement .
1	Forward Collision Alert Display Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Forward Collision Alert Display Procedure  Disconnect the electrical connector.
