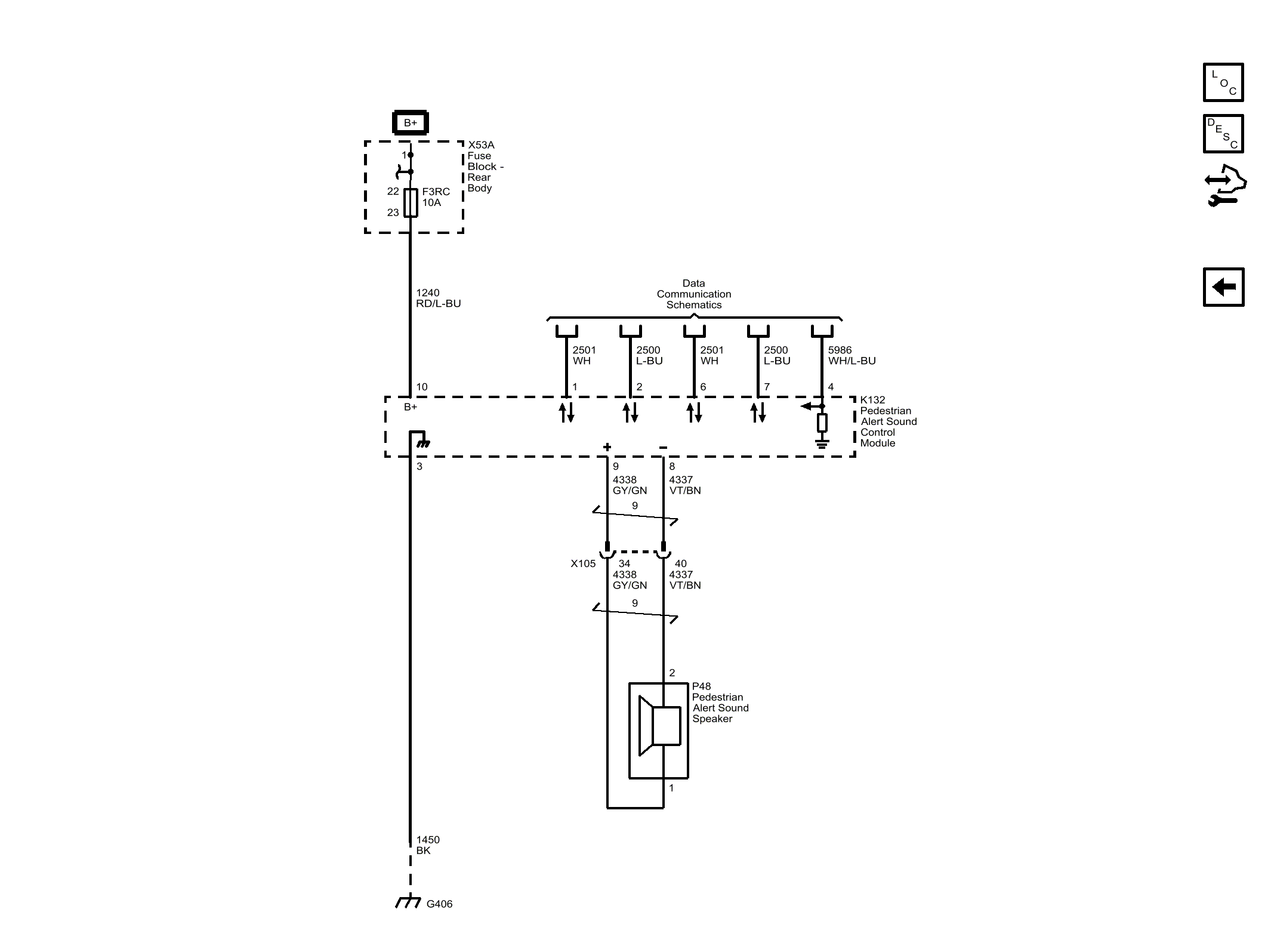

Home › Cadillac › 2016 › ELR › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Pedestrian Alert
