Multimedia Receptacle Replacement

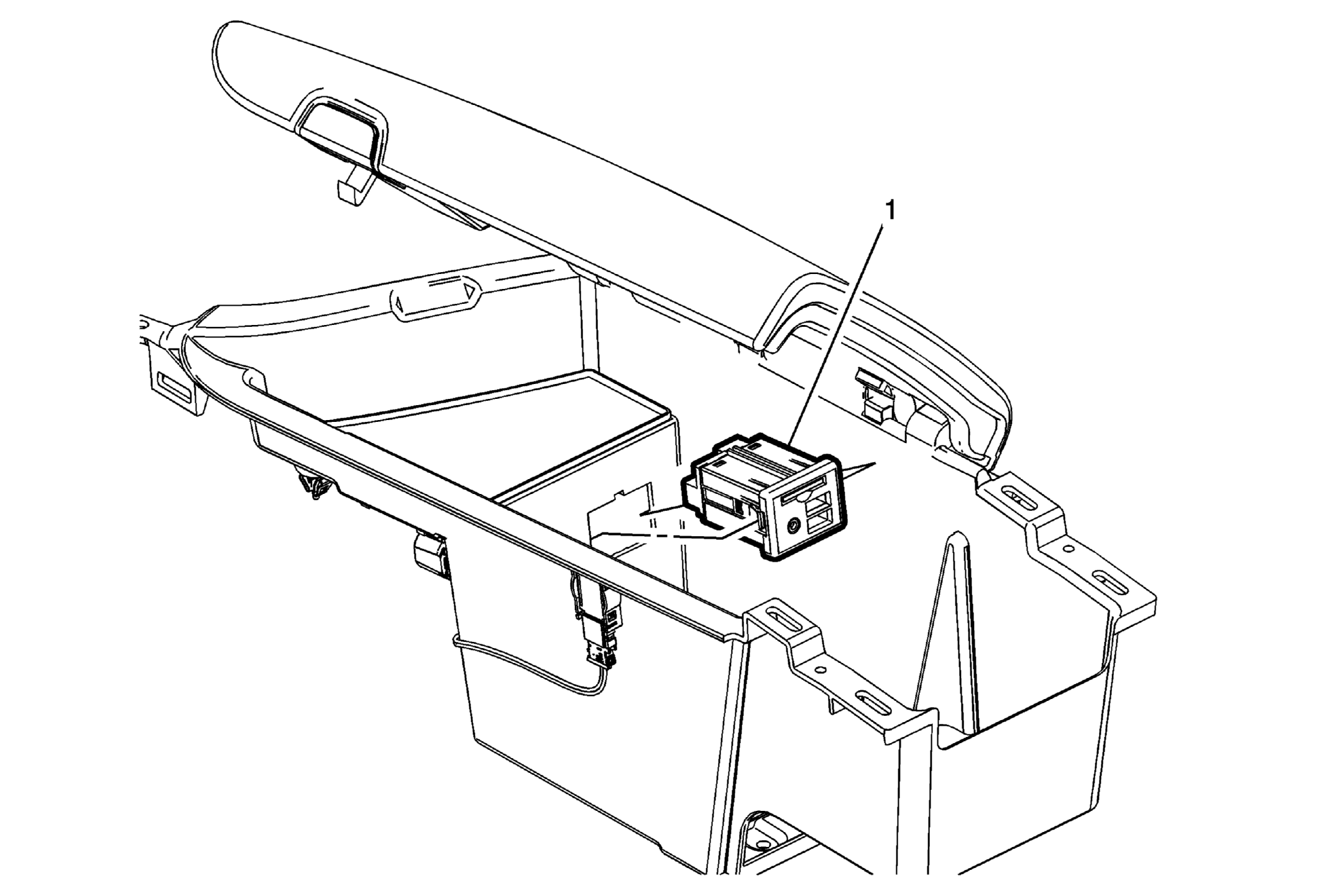

Fig 1: Multimedia Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Multimedia Receptacle Procedure Disconnect the electrical connector. Depress the tabs on the receptacle to remove.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

Multimedia Receptacle

Procedure
