Garage Door Opener Transmitter Replacement

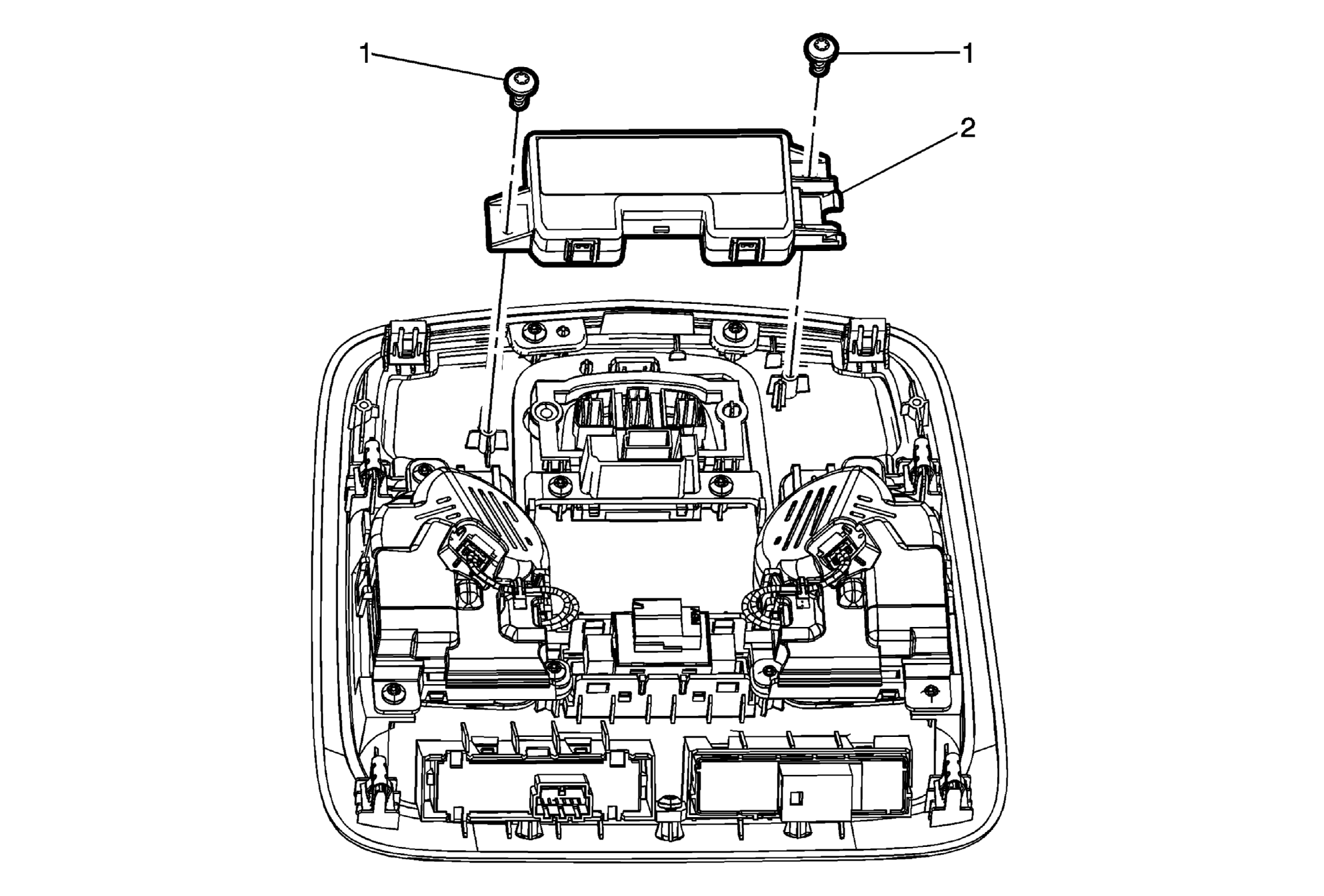

Fig 1: Garage Door Opener Transmitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Garage Door Opener Transmitter Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution
2	Garage Door Opener Transmitter Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up procedures.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Garage Door Opener Transmitter Fasteners (Qty: 2)

CAUTION:

Garage Door Opener Transmitter

Procedure
