Outside Rearview Mirror Replacement

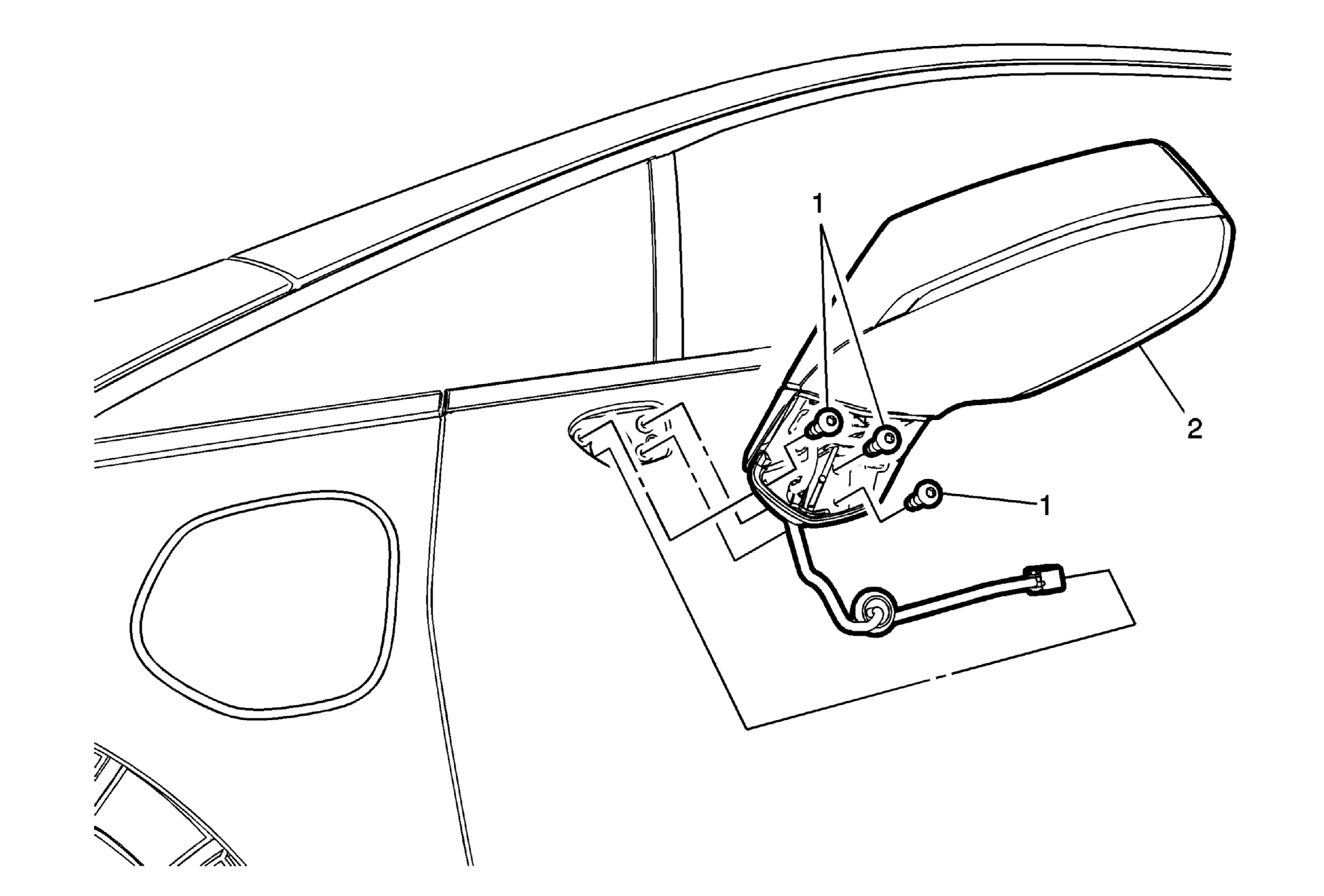

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the outside rearview mirror bracket cover. Refer to Outside Rearview Mirror Bracket Cover Replacement .
1	Outside Rearview Mirror Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Disconnect the mirror electrical connector. NOTE: Pull the wiring harness through the hole in the door.
