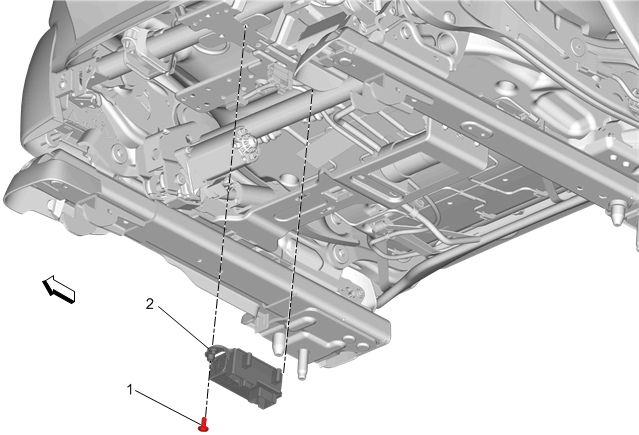

Front Seat Heater Control Module Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat front cushion front finish cover. Refer to Front Seat Cushion Front Finish Cover Replacement |
|
| 1 | Front Seat Heater Control Module Fastener
CAUTION:
Refer to Fastener Caution . Procedure Raise the seat to the highest position to gain access to the fastener. |
| 2 | Front Seat Heater Control Module Procedure Disconnect the electrical connector. |
