Home › Cadillac › 2016 › ELR › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

Defogger Wiring Schematics: Defogger

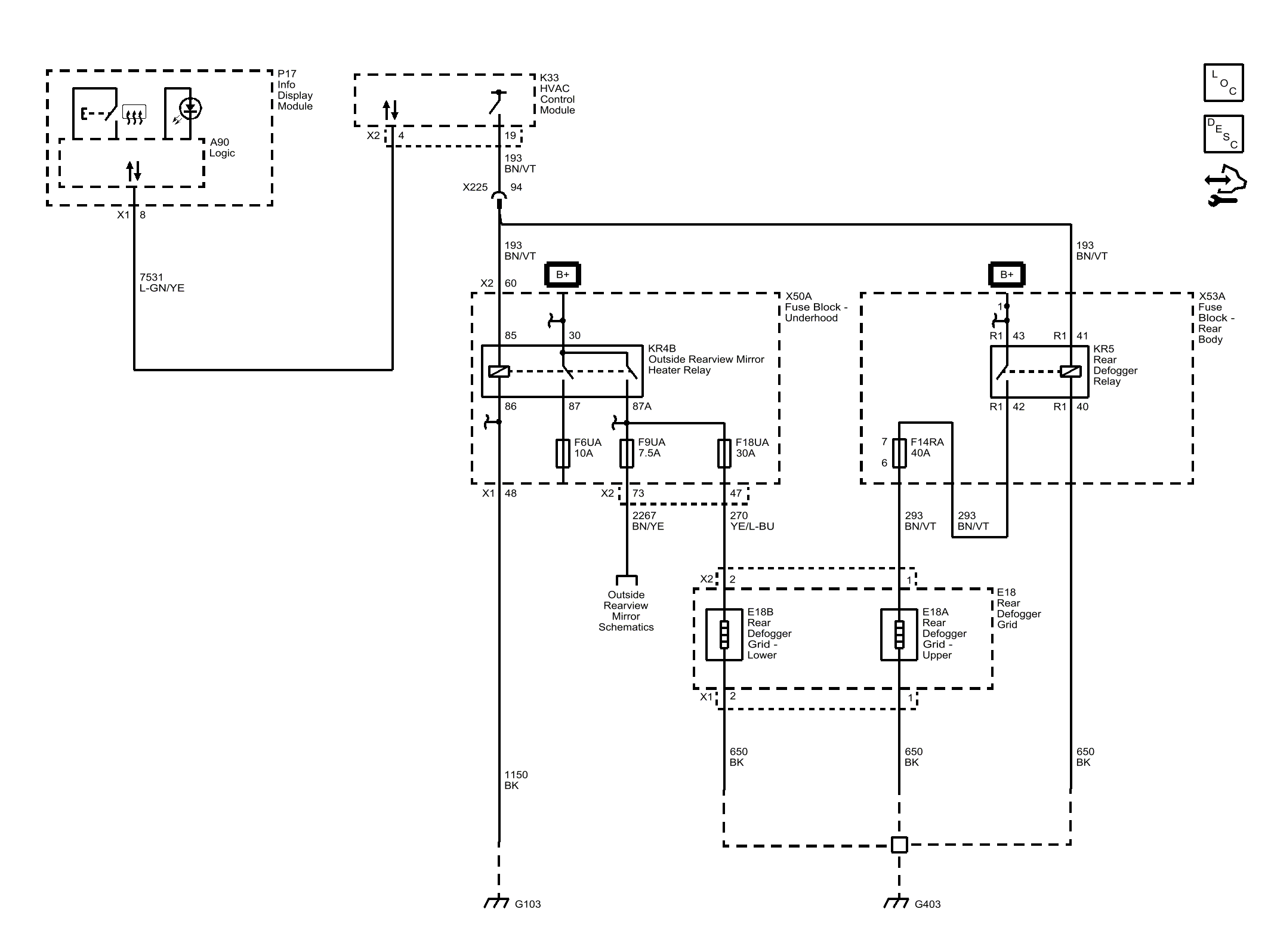

Fig 1: Defogger
GM4040670Courtesy of GENERAL MOTORS COMPANY
