Fastener Specifications
| Application | Specification | |
|---|---|---|
| Metric | English | |
| Accessory Wiring Junction Block Harness Connector Bolts | 10 N.m | 89 lb in |
| Ground Fastener M6 Nut | 9 N.m | 80 lb in |
| Ground Fastener M6 Nut - Repair | 8 N.m | 71 lb in |
| Ground Fastener M7 Bolt | 9 N.m | 80 lb in |
| Ground Fastener M8 Nut | 22 N.m | 16 lb ft |
| Ground Fastener M10 Nut | 45 N.m | 33 lb ft |
| Starter Fuse Nut (1) | 12 N.m | 106 lb in |
| Starter Fuse Nut (2) | 12 N.m | 106 lb in |
| Engine Harness Battery Positive Fuse Block Nut (3) | 12 N.m | 106 lb in |
| Body Harness Terminal Nuts (4) | 4.7 N.m | 42 lb in |
| Body Front Wiring Harness Fuse Block Nut (5) | 17 N.m | 12 lb ft |
| Battery Positive Fuse Block Cable Nut (6) | 4 N.m | 35 lb in |

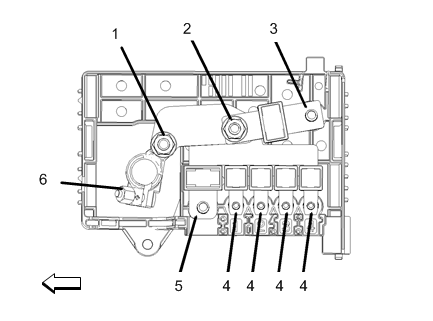

NOTE:
See diagram below for fuse block nut location.
