Transmission Components

Transmission Components

Items
1. B228B Drive Motor 2 Position Sensor B228B Drive Motor 2 Position Sensor X1B228B Drive Motor 2 Position Sensor X2
2. T12 Automatic Transmission Assembly

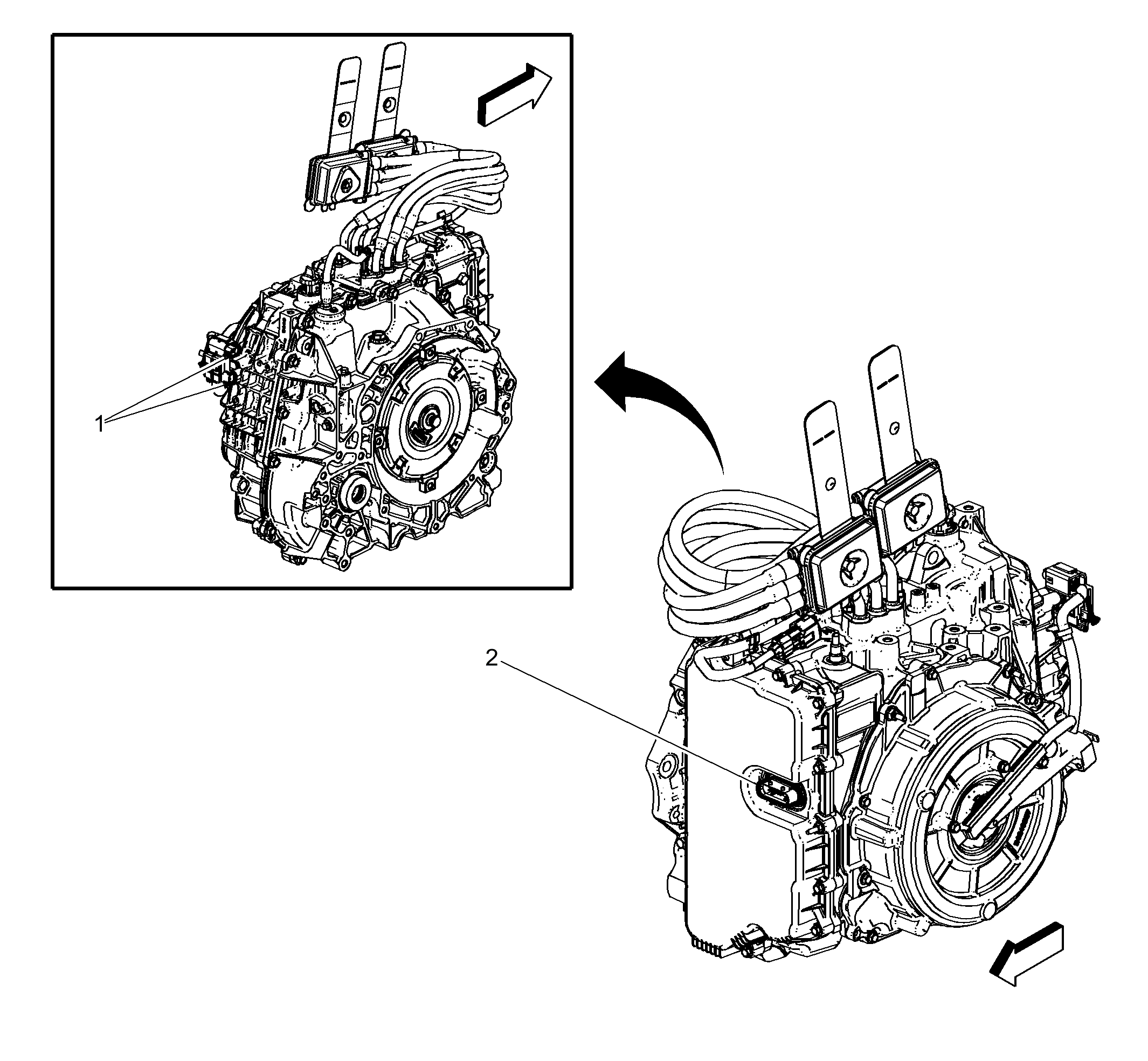

Fig 1: Transmission Components
GM3682080Courtesy of GENERAL MOTORS COMPANY
