Air Cleaner Resonator Outlet Duct Replacement

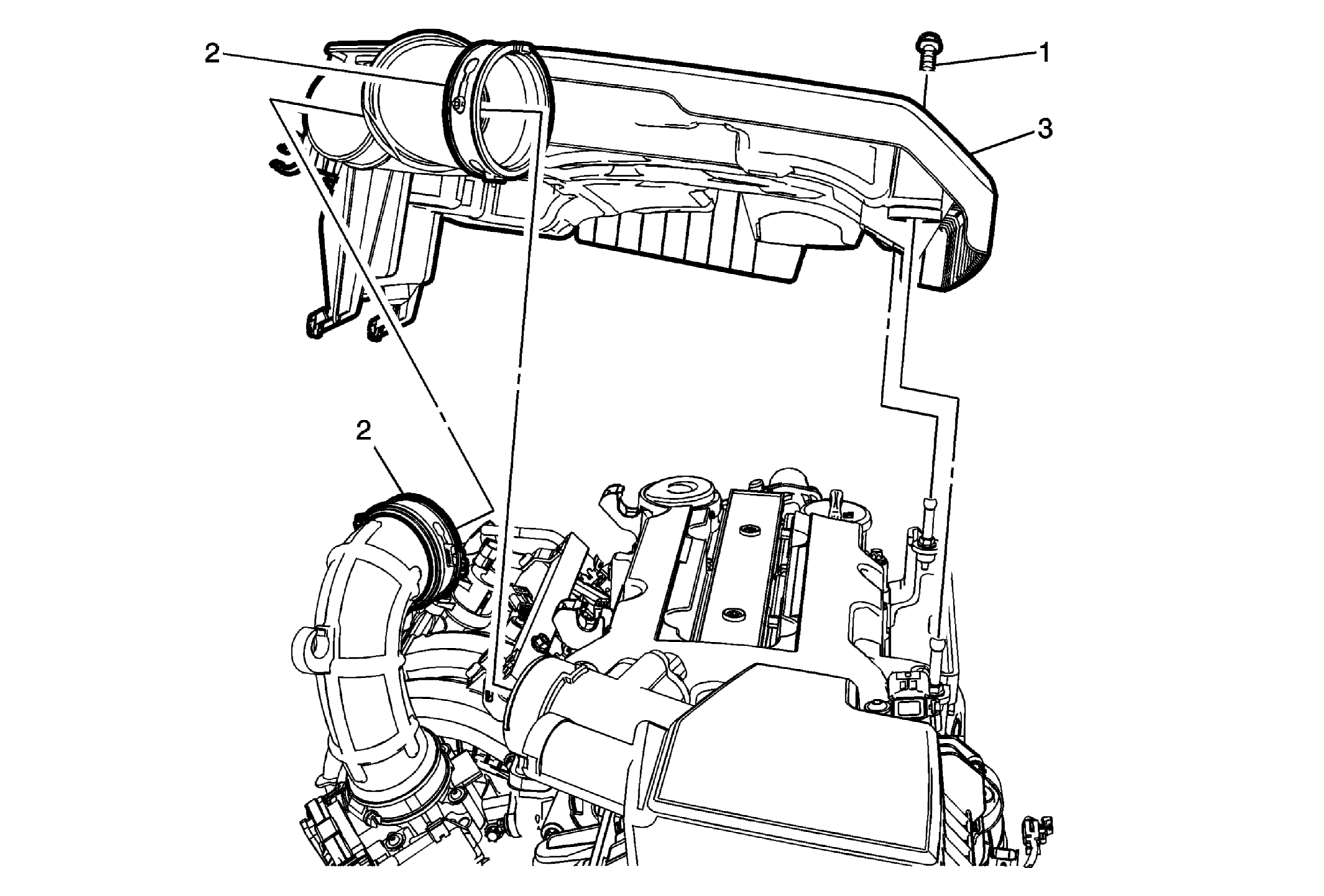

Fig 1: Air Cleaner Resonator Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the oil level indicator.
1	Air Cleaner Resonator Outlet Duct Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Cleaner Resonator Outlet Duct Clamp (Qty: 2) NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
3	Air Cleaner Resonator Outlet Duct
