Fuel Pump Fuel Feed Hose Replacement

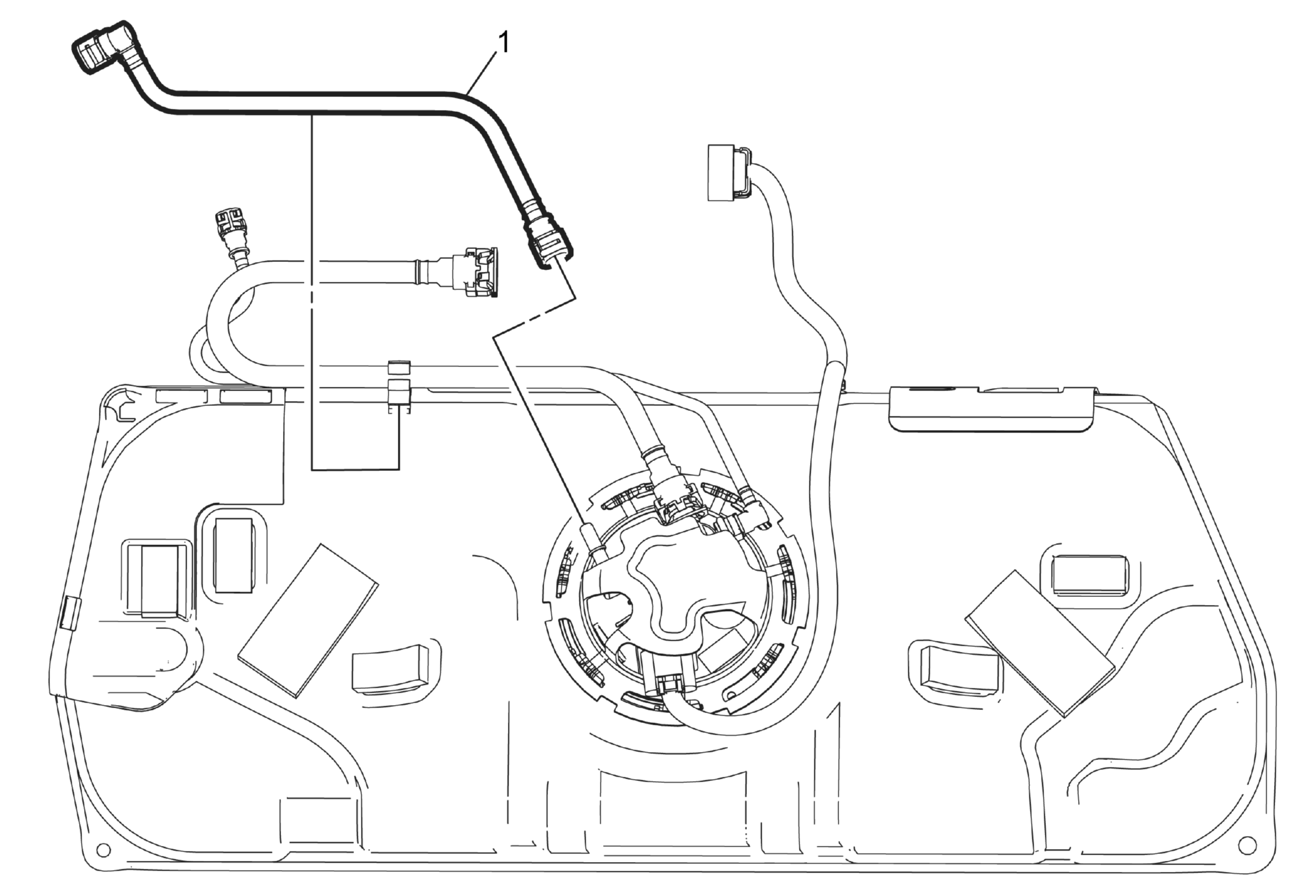

Fig 1: Fuel Pump Fuel Feed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Pump Fuel Feed Hose Procedure  Disconnect the fuel pump fuel feed hose quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
