Fuel Tank Shield Replacement

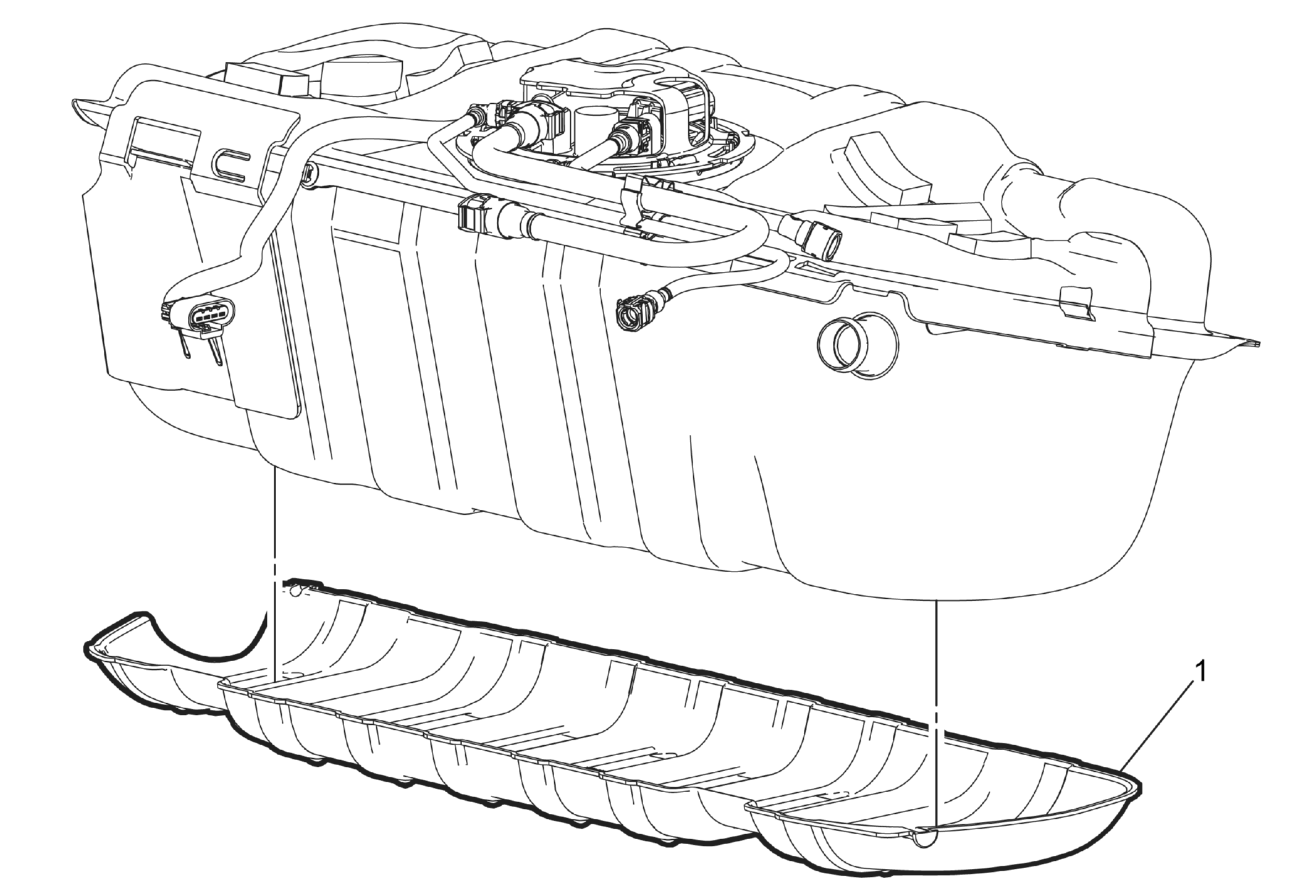

Fig 1: Fuel Tank Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Shield
