Fuel Tank Upper Shield Replacement

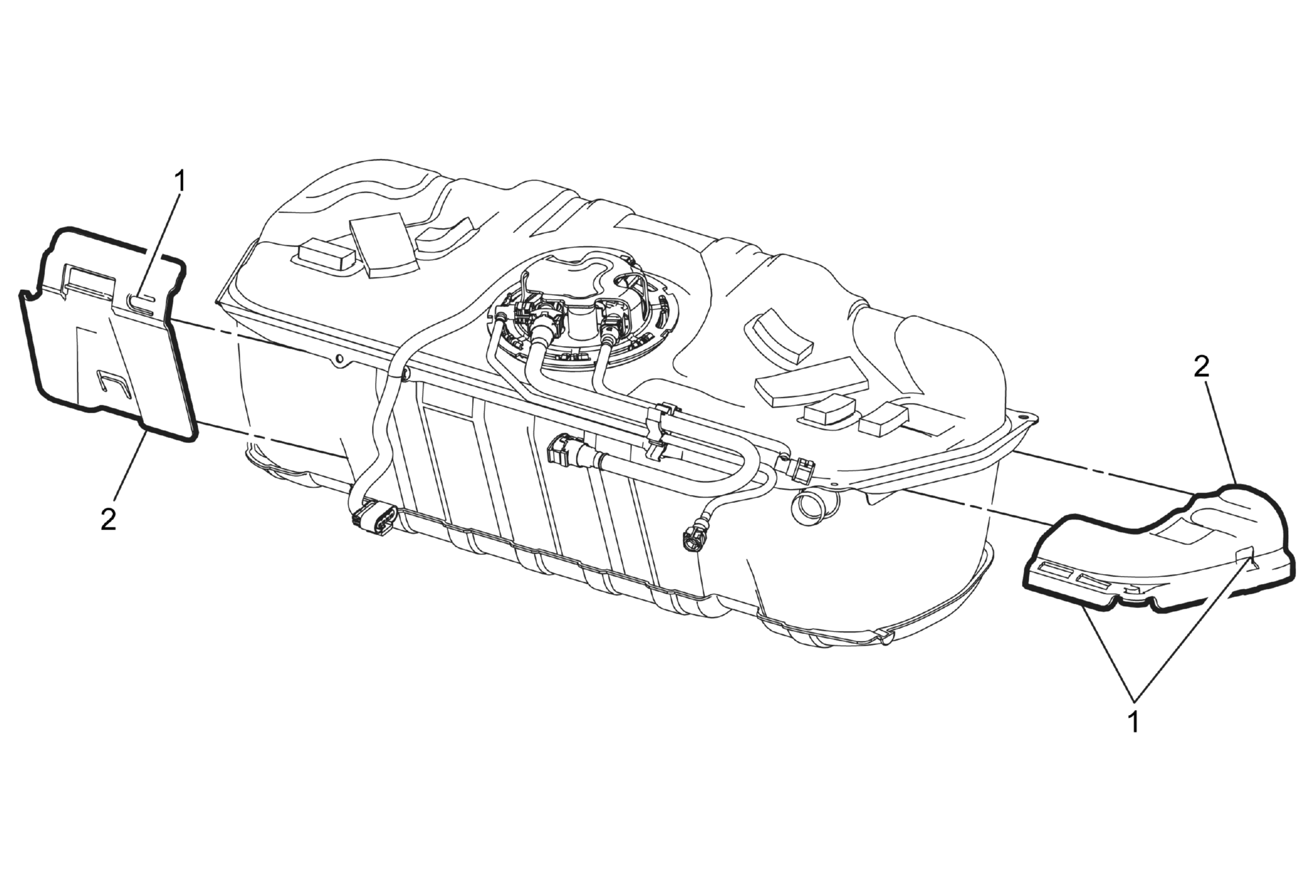

Fig 1: Fuel Tank Upper Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Upper Shield Tabs (Qty: 3)
2	Fuel Tank Upper Shield (Qty: 2)
