Ignition Controls - Ignition Coil Module

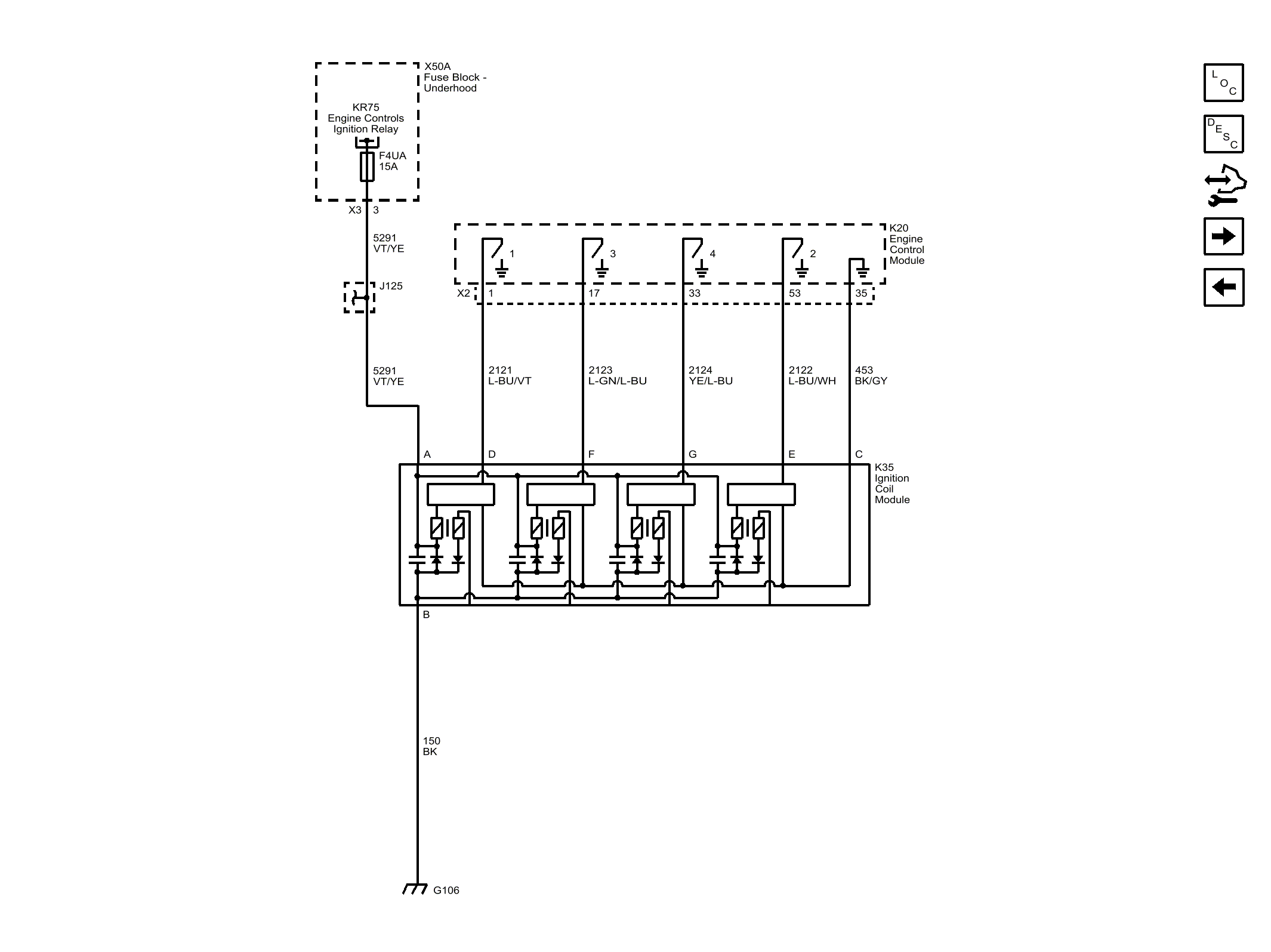

Fig 1: Ignition Controls - Ignition Coil Module
GM4041145Courtesy of GENERAL MOTORS COMPANY
