Blower Motor Control Module Replacement

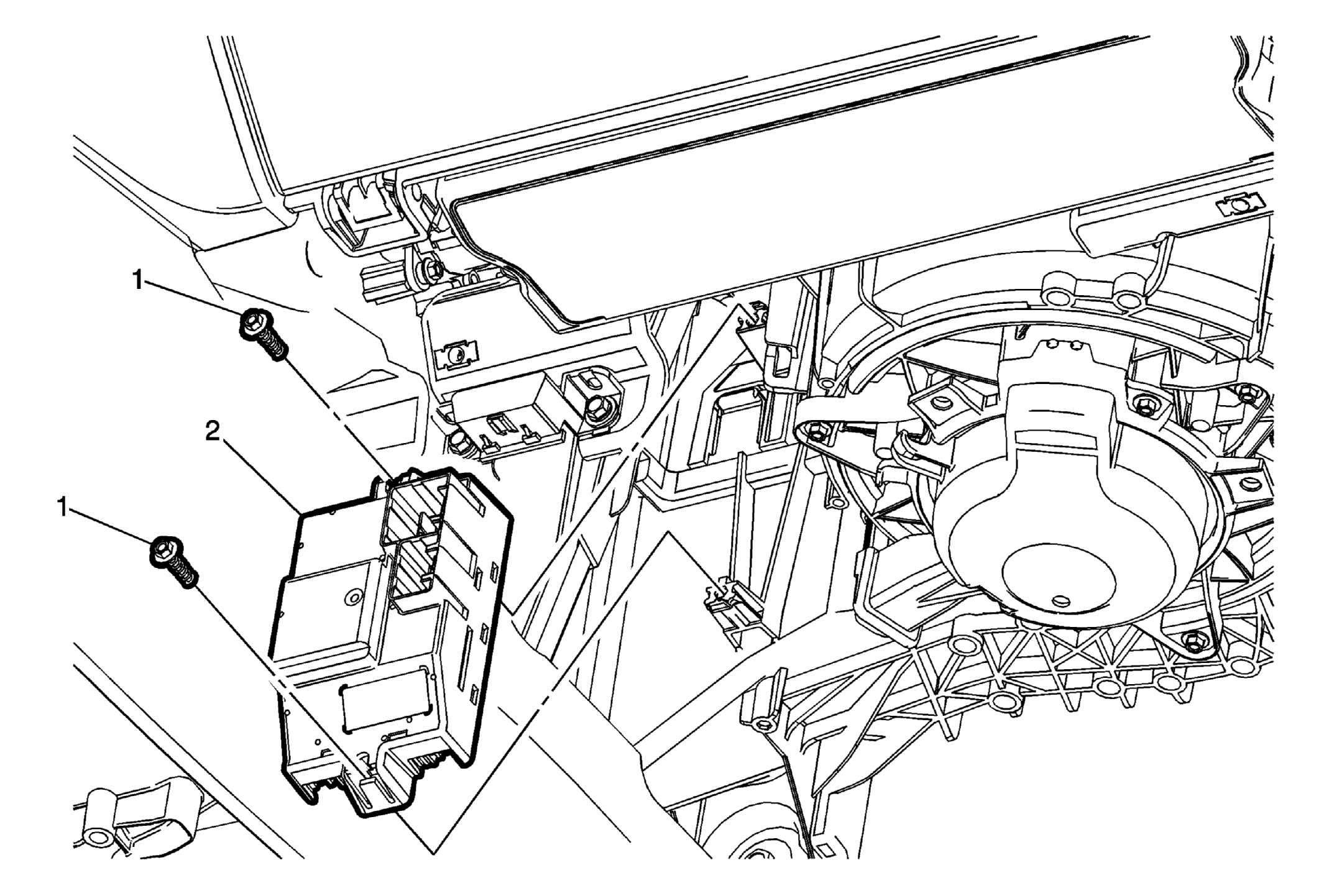

Fig 1: Blower Motor Control Module

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the right front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
1	Blower Motor Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Motor Control Module Procedure  Disconnect the blower motor control module electrical connectors.
