Accessory DC Power Control Module Cooling Blower Replacement

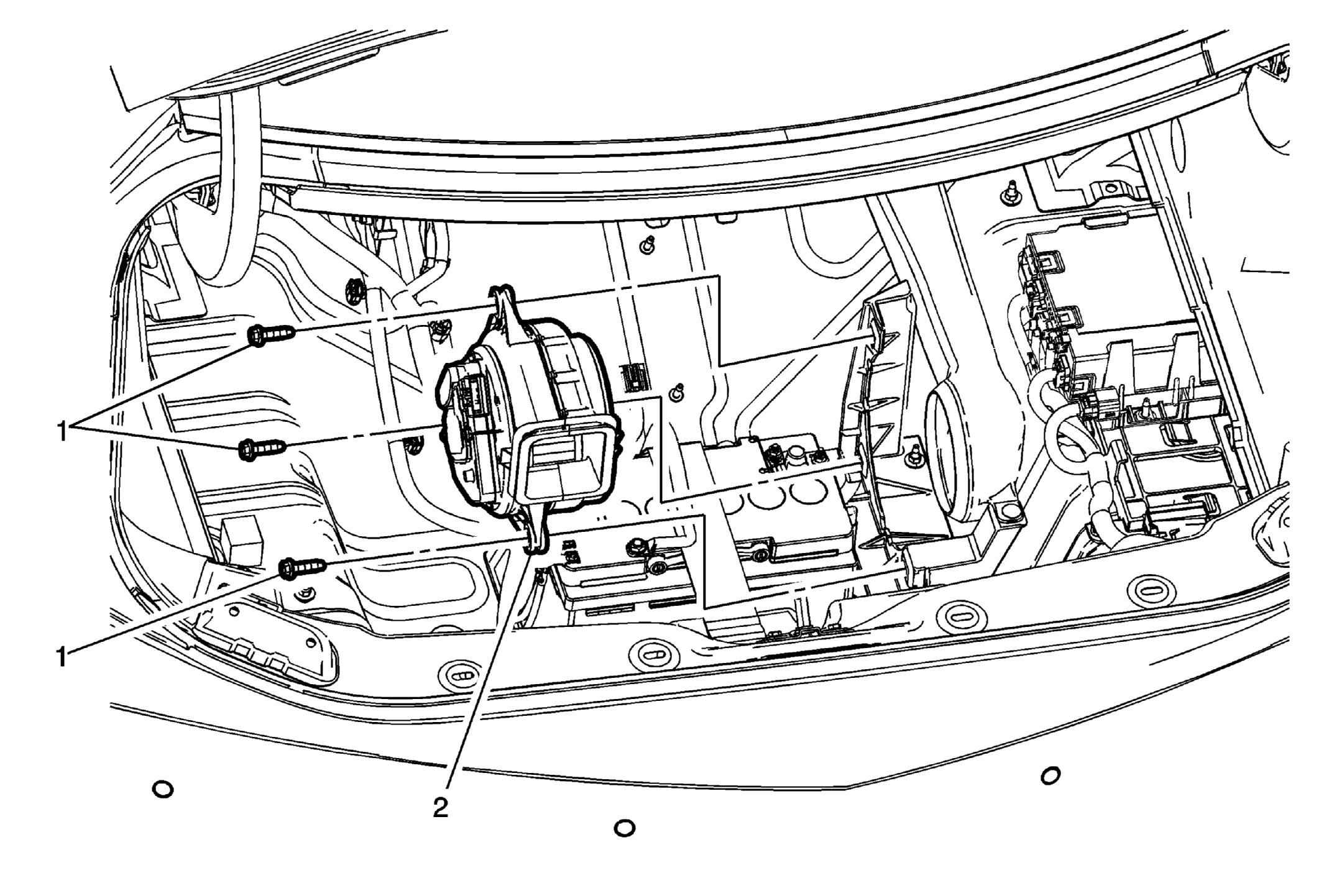

Fig 1: Accessory DC Power Control Module Cooling Blower

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
1	Accessory DC Power Control Module Cooling Blower Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Accessory DC Power Control Module Cooling Blower Procedure  Disconnect the accessory DC power control module cooling blower electrical connector.
