Drive Motor Generator Control Module Tray Replacement

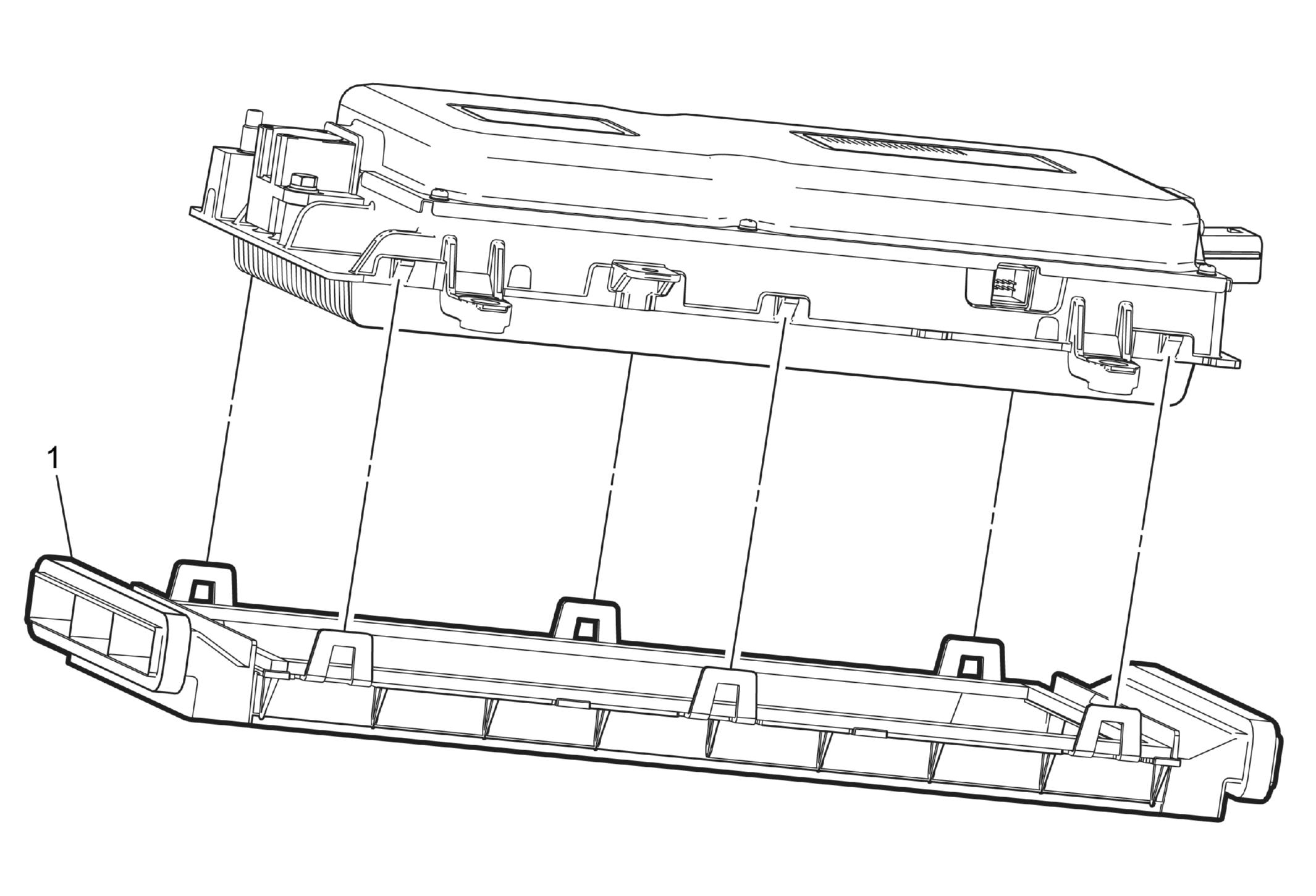

Fig 1: Drive Motor Generator Control Module Tray

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the accessory DC power control module. Refer to Accessory DC Power Control Module Replacement .
1	Drive Motor Generator Control Module Tray Procedure  Un-clip the drive motor generator control module tray from the drive motor generator control module.
