Rear Side Door Window Frame Front Applique Replacement

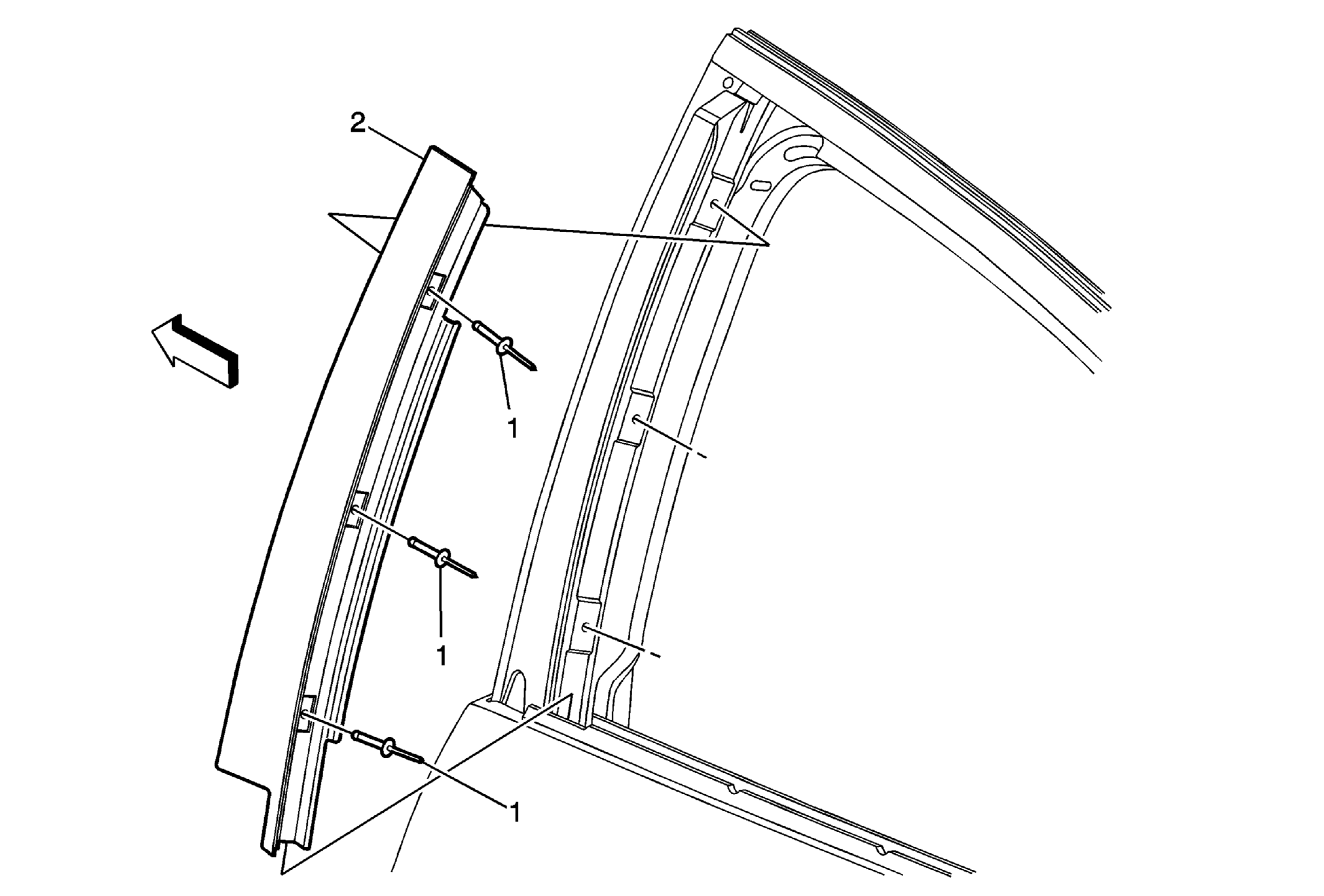

Fig 1: Rear Side Door Window Frame Front Applique & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Frame Front Applique Fastener (Qty: 3) WARNING: Refer to Glass and Sheet Metal Handling Warning Procedure Pull the rear side door window weatherstrip from the front applique to expose the rivets. When drilling cover/protect the interior trim and door from the metal shavings. Using a suitable tool, drill out the rivets from the front of the rear door frame applique.
2	Rear Side Door Window Frame Front Applique Procedure Use a suitable tool, install the rivets in the front side door frame.

Callout

Component Name

Preliminary Procedure
Remove the rear side door window. Refer to Rear Side Door Window Replacement .

Rear Side Door Window Frame Front Applique Fastener (Qty: 3)

WARNING:

Procedure

Pull the rear side door window weatherstrip from the front applique to expose the rivets.
When drilling cover/protect the interior trim and door from the metal shavings.
Using a suitable tool, drill out the rivets from the front of the rear door frame applique.

Rear Side Door Window Frame Front Applique
Procedure
Use a suitable tool, install the rivets in the front side door frame.
