Battery Tray Replacement

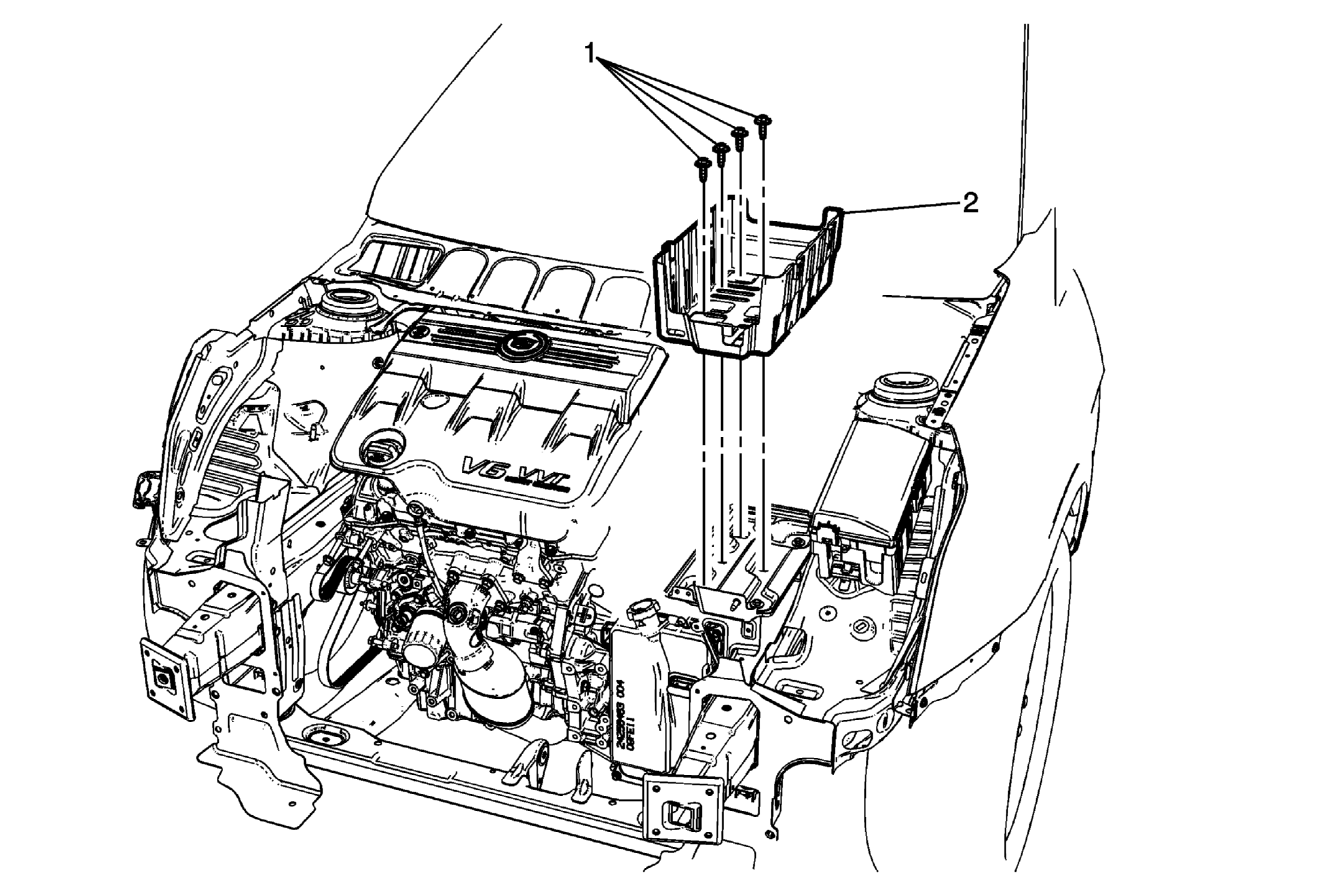

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement .
1	Battery Tray Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in).
2	Battery Tray
