Driver Information Display Replacement

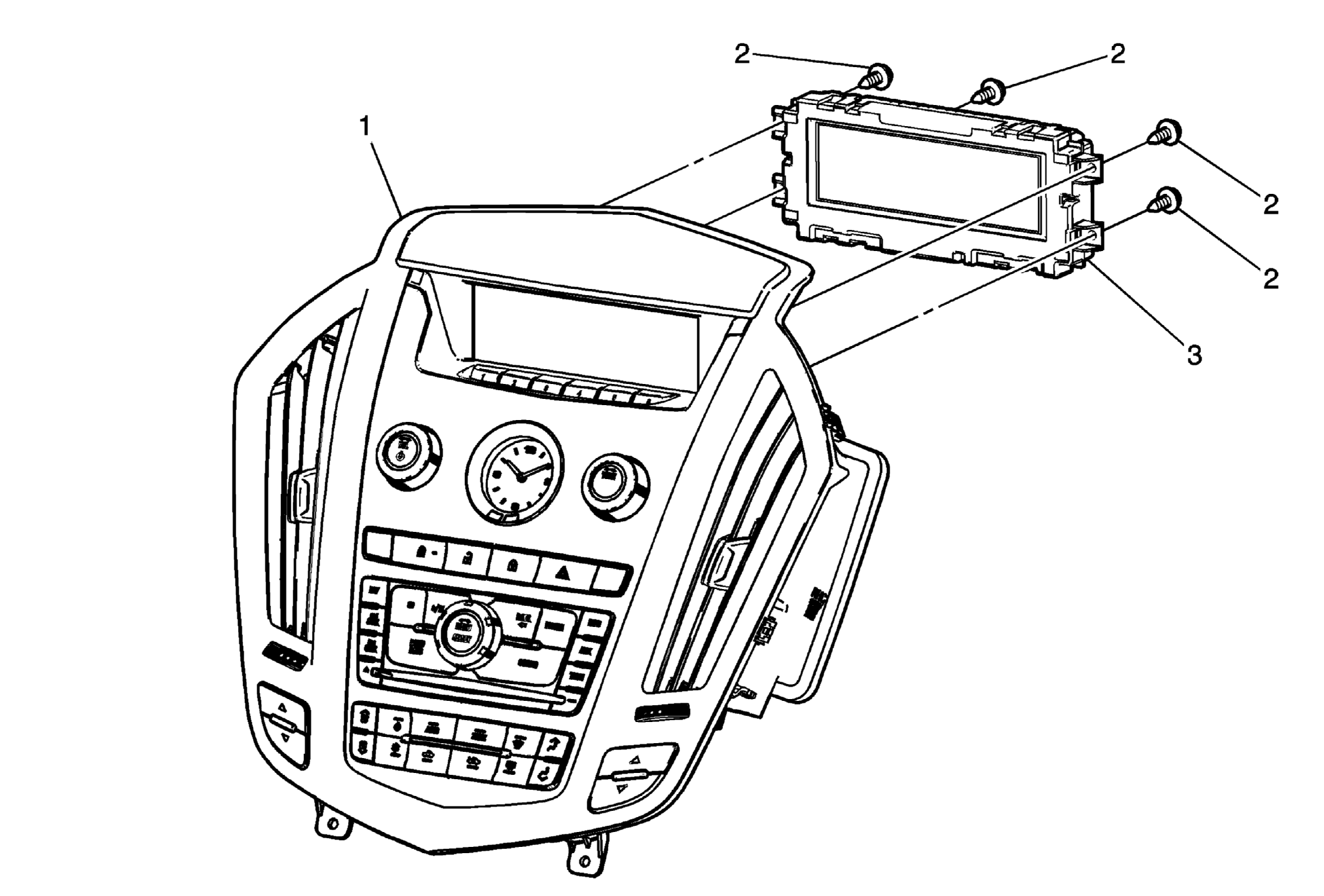

Fig 1: Driver Information Display & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Control Assembly. Refer to Radio Control Assembly Replacement
2	Drivers Information Display Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Drivers Information Display Assembly Procedure  Refer to Control Module References for programming and set up information.
