Power, Ground, and Subsystem References (1 of 3)
Power, Ground, and Subsystem References (1 of 3)

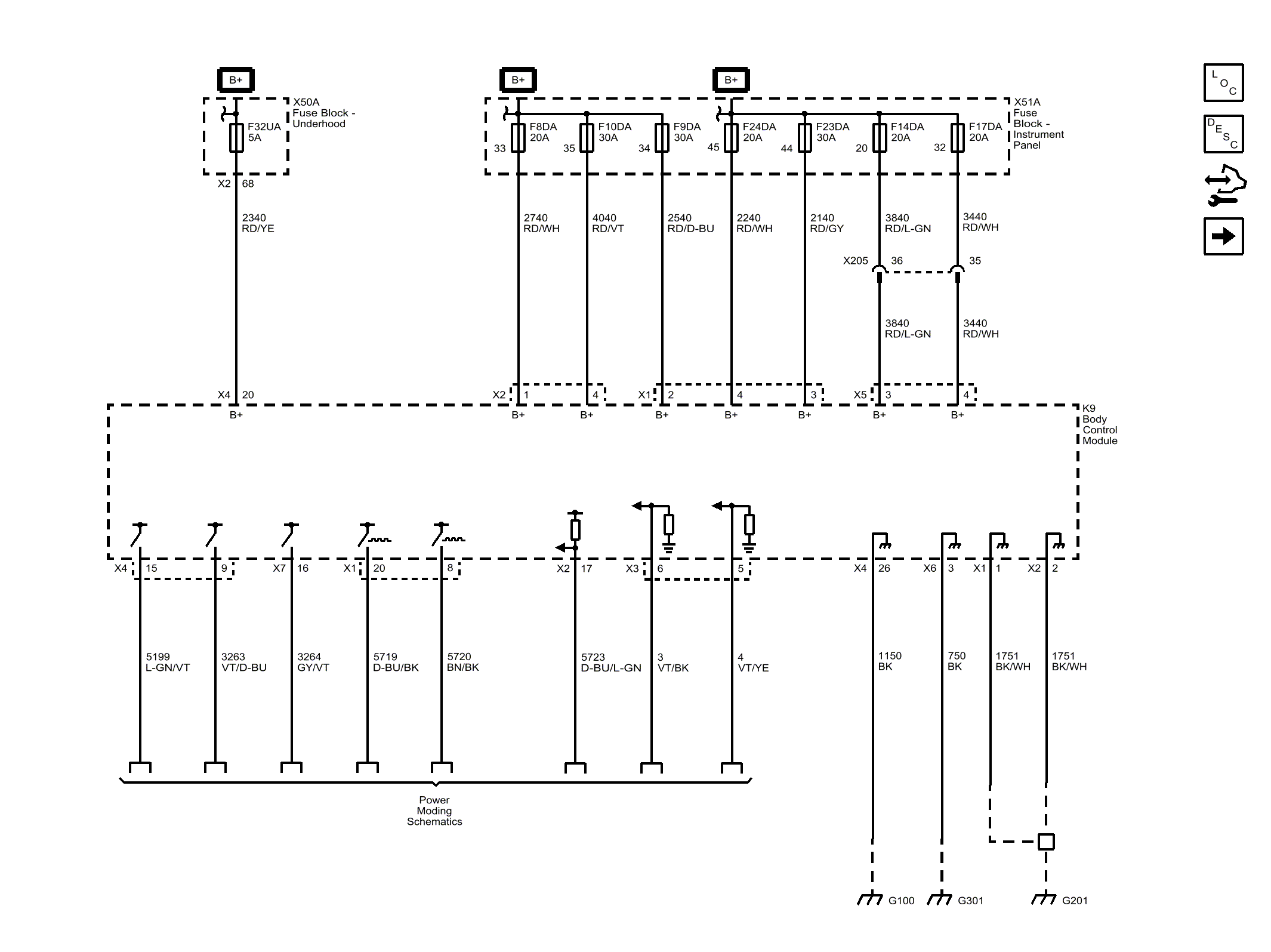

Fig 1: Power, Ground, and Subsystem References (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
