Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Communication and Enable Wake-up Circuits
Communication and Enable Wake-up Circuits

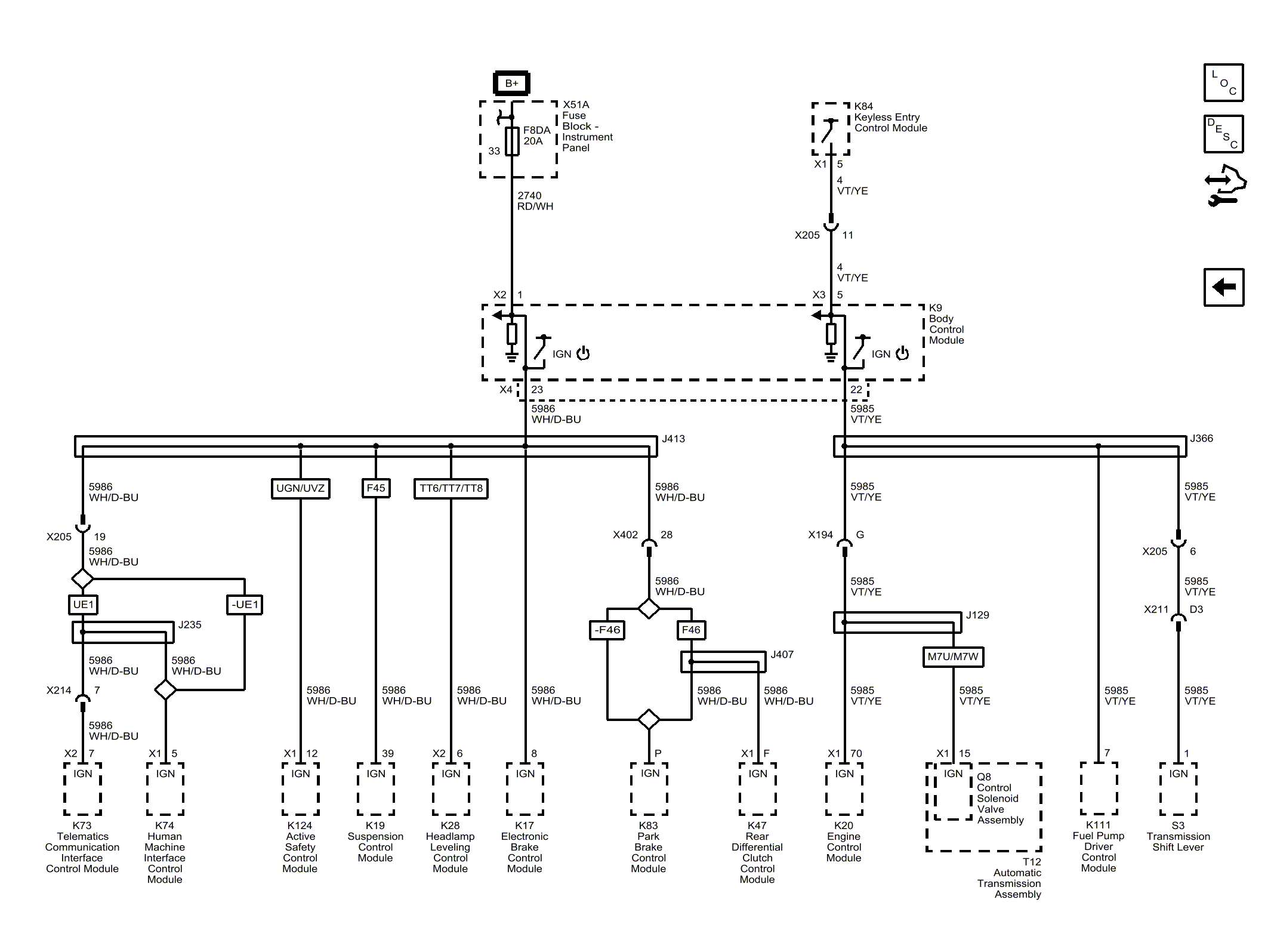

Fig 1: Communication and Enable Wake-up Circuits
