Keyless Entry - Passive and Keyless Start

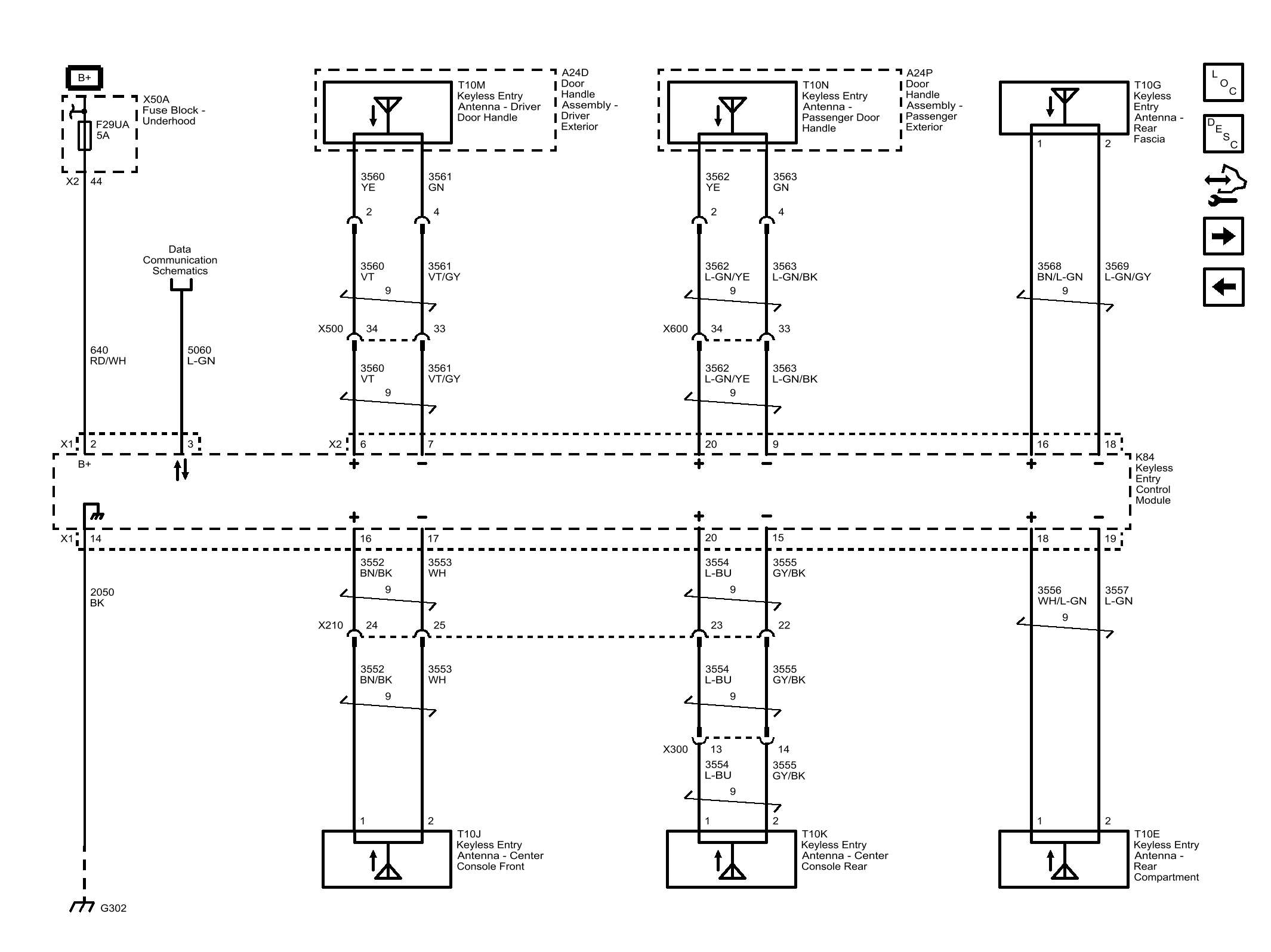

Fig 1: Keyless Entry - Passive and Keyless Start
GM4143423Courtesy of GENERAL MOTORS COMPANY
