Front Compartment Insulator Replacement

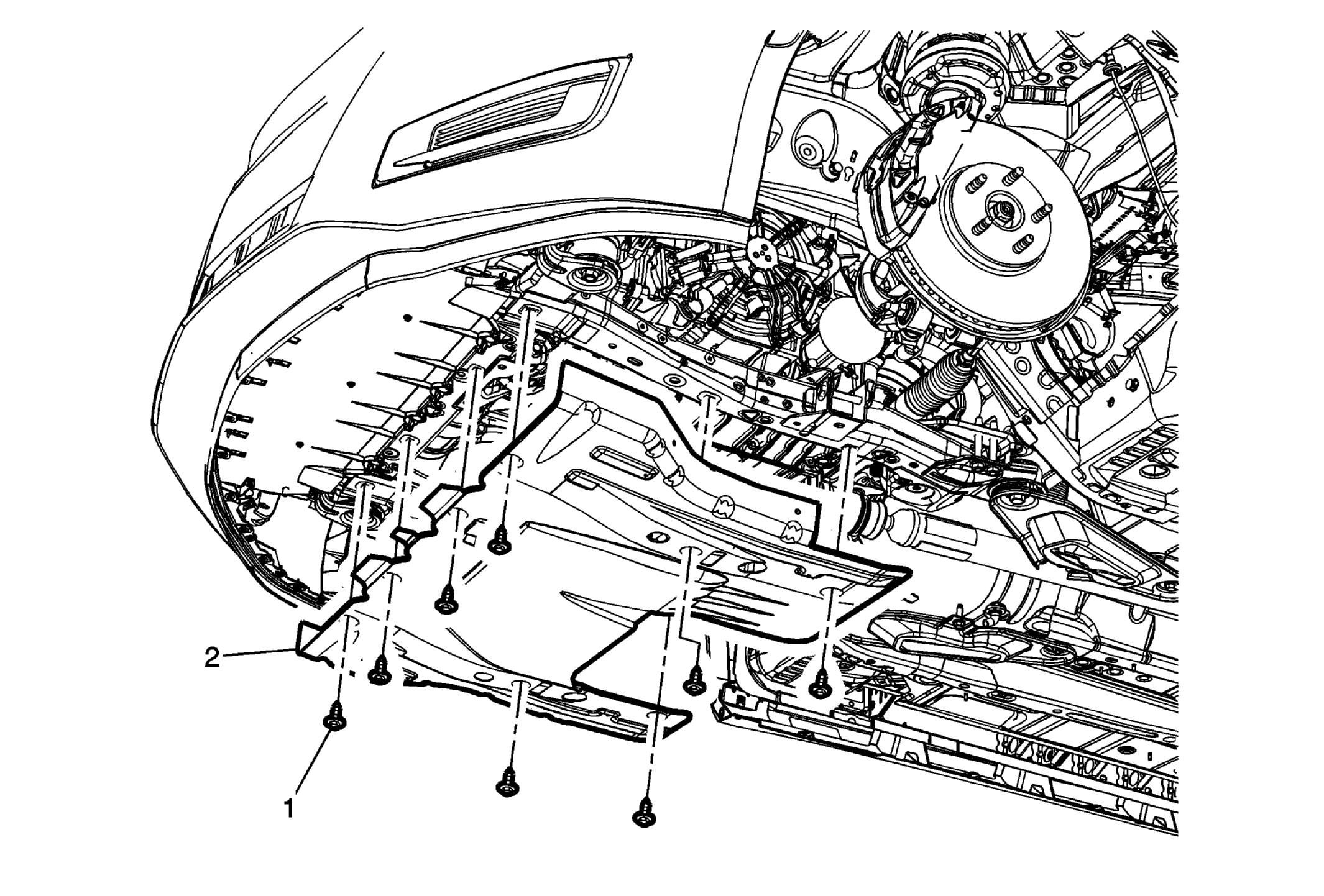

Fig 1: Front Compartment Insulator & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the drivetrain and front suspension frame transmission protector, if equipped. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement . Remove the push-in retainers from the front wheelhouse liners. Refer to Front Wheelhouse Front Liner Replacement .
1	Front Compartment Insulator Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Compartment Insulator Procedure Slide the front edge of the front splash shield from under the front fascia.

Callout

Component Name

Preliminary Procedures

Remove the drivetrain and front suspension frame transmission protector, if equipped. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .
Remove the push-in retainers from the front wheelhouse liners. Refer to Front Wheelhouse Front Liner Replacement .

Front Compartment Insulator Bolt (Qty: 8)

CAUTION:

Tighten
3 N.m (27 lb in)

Front Compartment Insulator
Procedure
Slide the front edge of the front splash shield from under the front fascia.
