Battery Negative Cable Disconnection and Connection

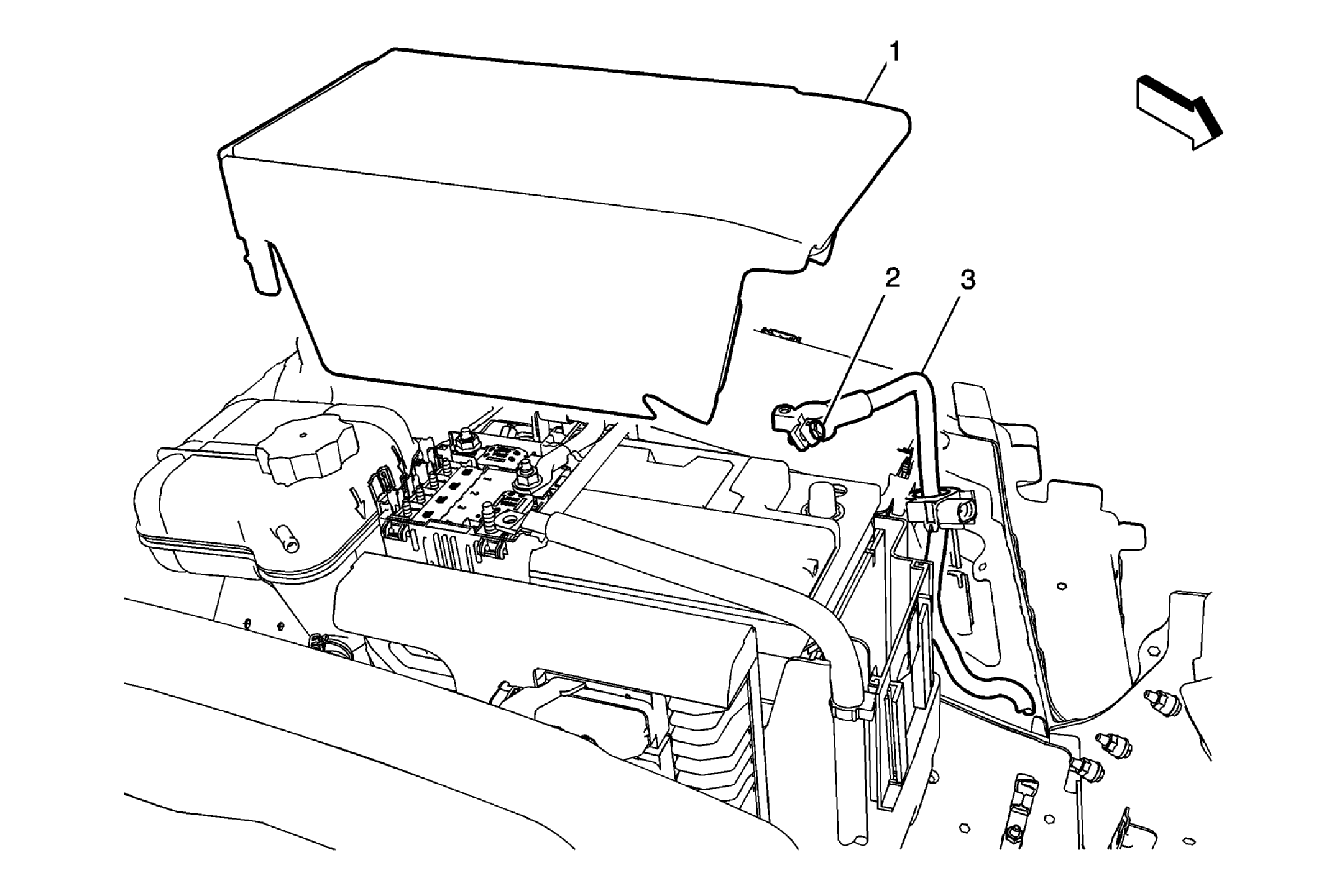

Fig 1: View Of Battery Negative Cable & Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Record radio and engine oil life resets.
1	Battery Cover
2	Battery Negative Cable Fastener WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Battery Negative Cable
