Ambient Air Temperature Sensor Replacement

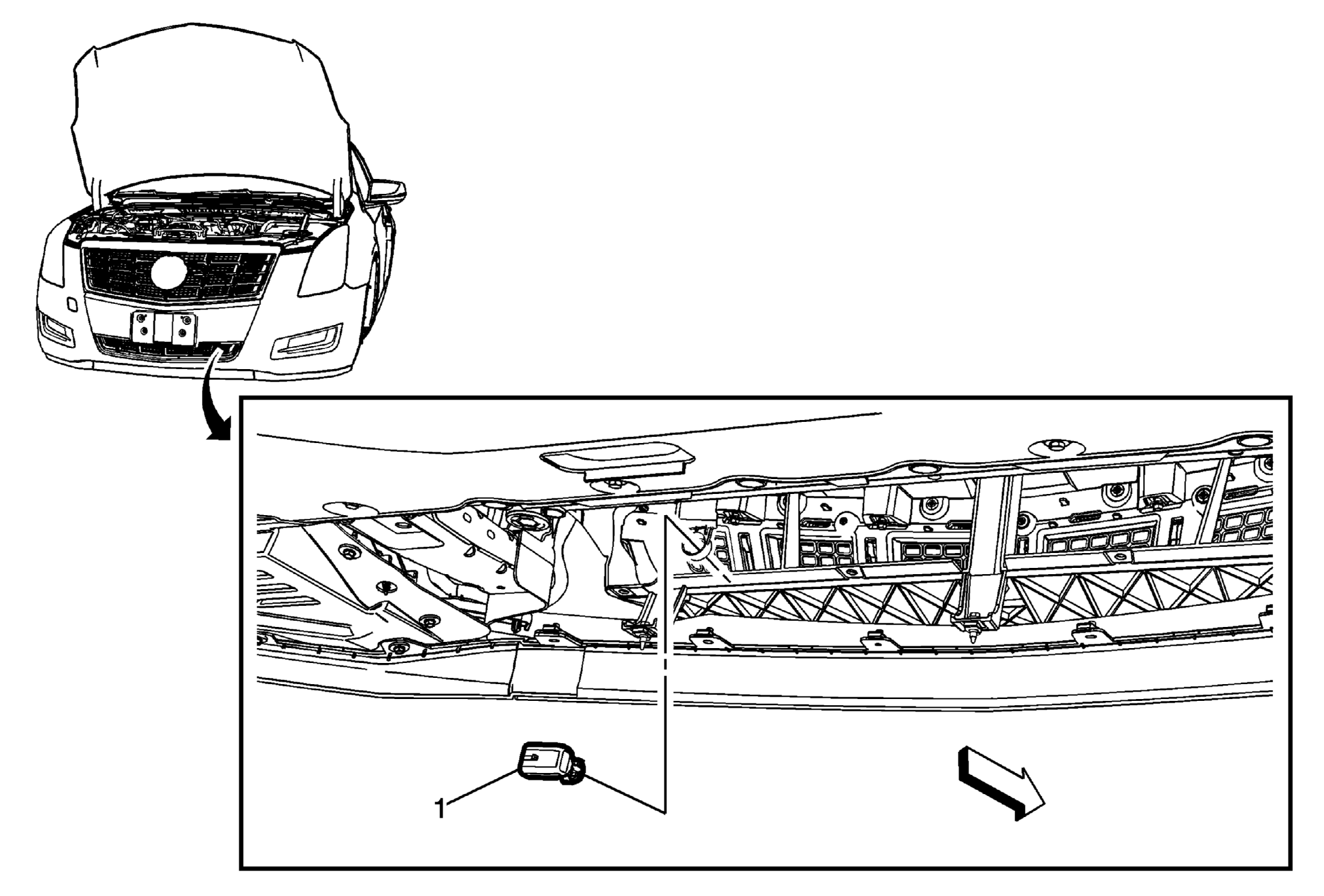

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the Front Bumper Fascia. Refer to Front Bumper Fascia Replacement .
1	Ambient Air Temperature Gauge Sensor Procedure Disconnect the ambient air temperature gauge sensor connector. Squeeze the ambient air temperature gauge sensor retaining tabs to remove from the front bumper fascia assembly.

Callout

Component Name

Preliminary Procedure
Remove the Front Bumper Fascia. Refer to Front Bumper Fascia Replacement .

Ambient Air Temperature Gauge Sensor

Procedure

Disconnect the ambient air temperature gauge sensor connector.
Squeeze the ambient air temperature gauge sensor retaining tabs to remove from the front bumper fascia assembly.
