Power, Ground and Data Communication

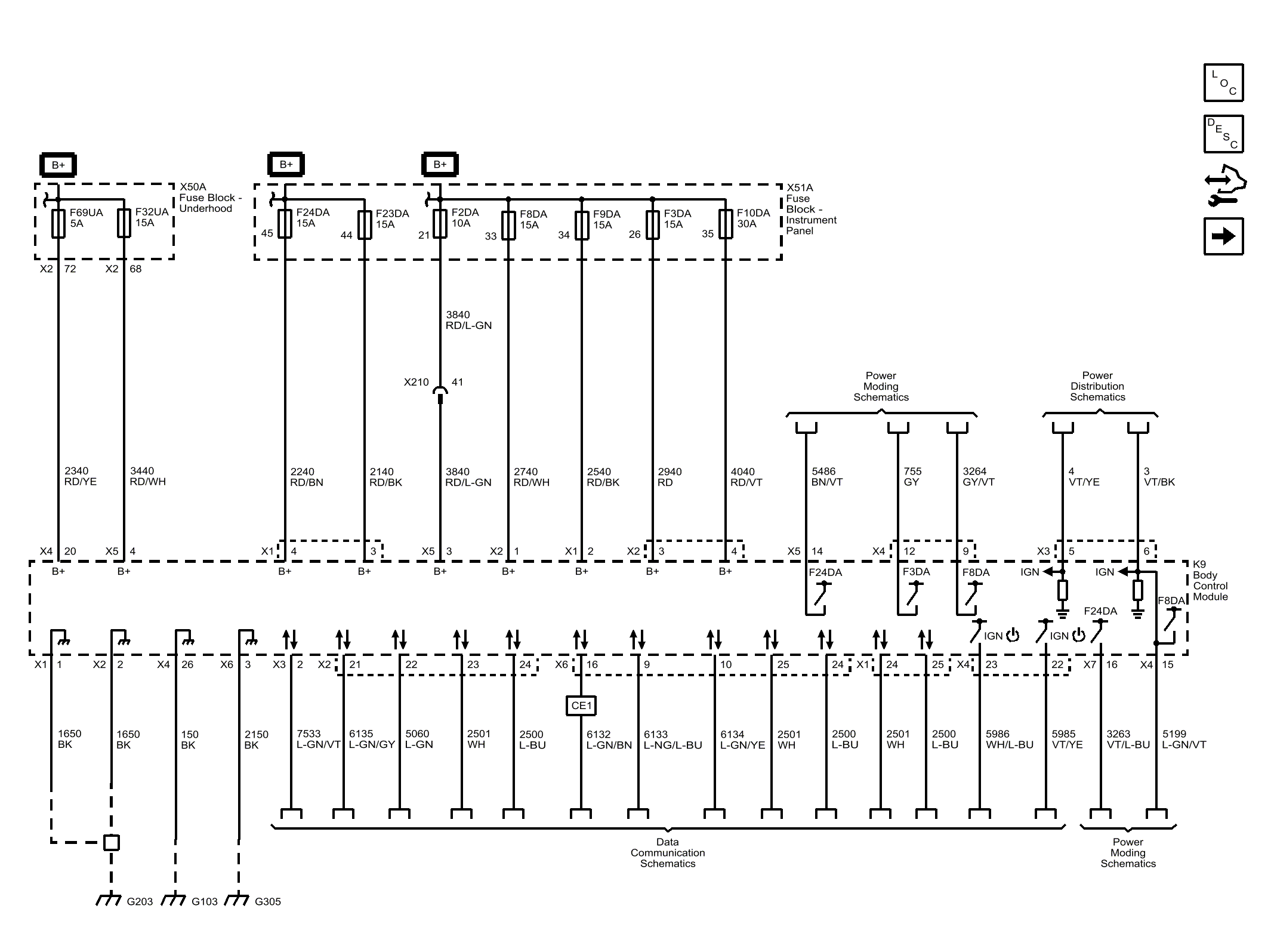

Fig 1: Power, Ground and Data Communication
GM4143322Courtesy of GENERAL MOTORS COMPANY
