Body Control Module Replacement

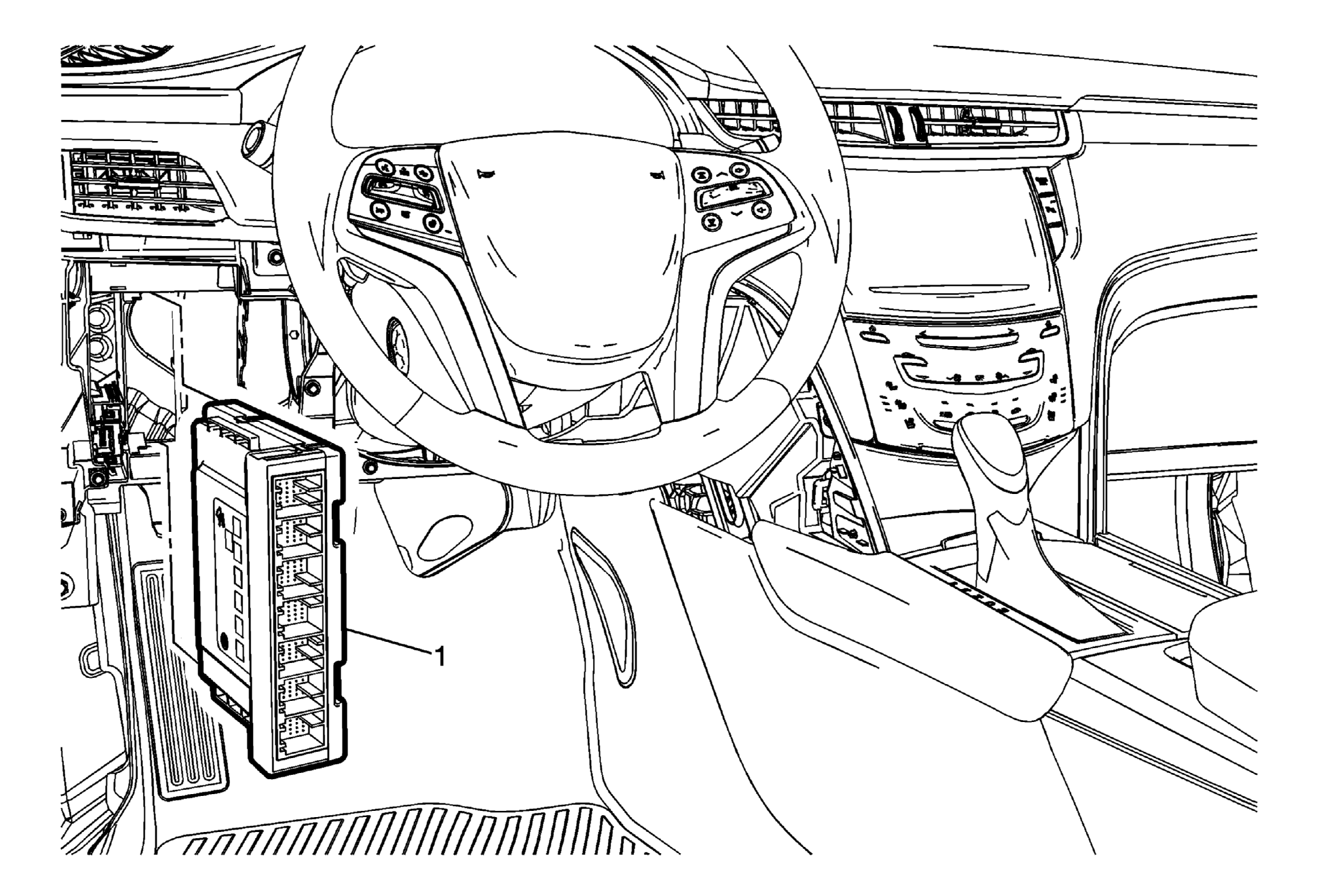

Fig 1: Body Control Module
GM2755929Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
  2. Unclip and reposition the instrument panel fuse block.
1 Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Push tabs to release the body control module from the bracket.
  3. Reprogram the module if replaced. Refer to Control Module References .
